Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-47
8-2-12 TGC key assy / TGC Knob Set
8-2-12-1 Tools
• Common pilIips screwdrivers
8-2-12-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-12-3 Removal procedure
1.) Remove the CFUNCKEY Assy. Refer to the 8-2-7 "Main Keyboard Assy" on page 8-37.
2.) Remove the TGC Knobs.
3.) Unscrew 4 screws (1-4).

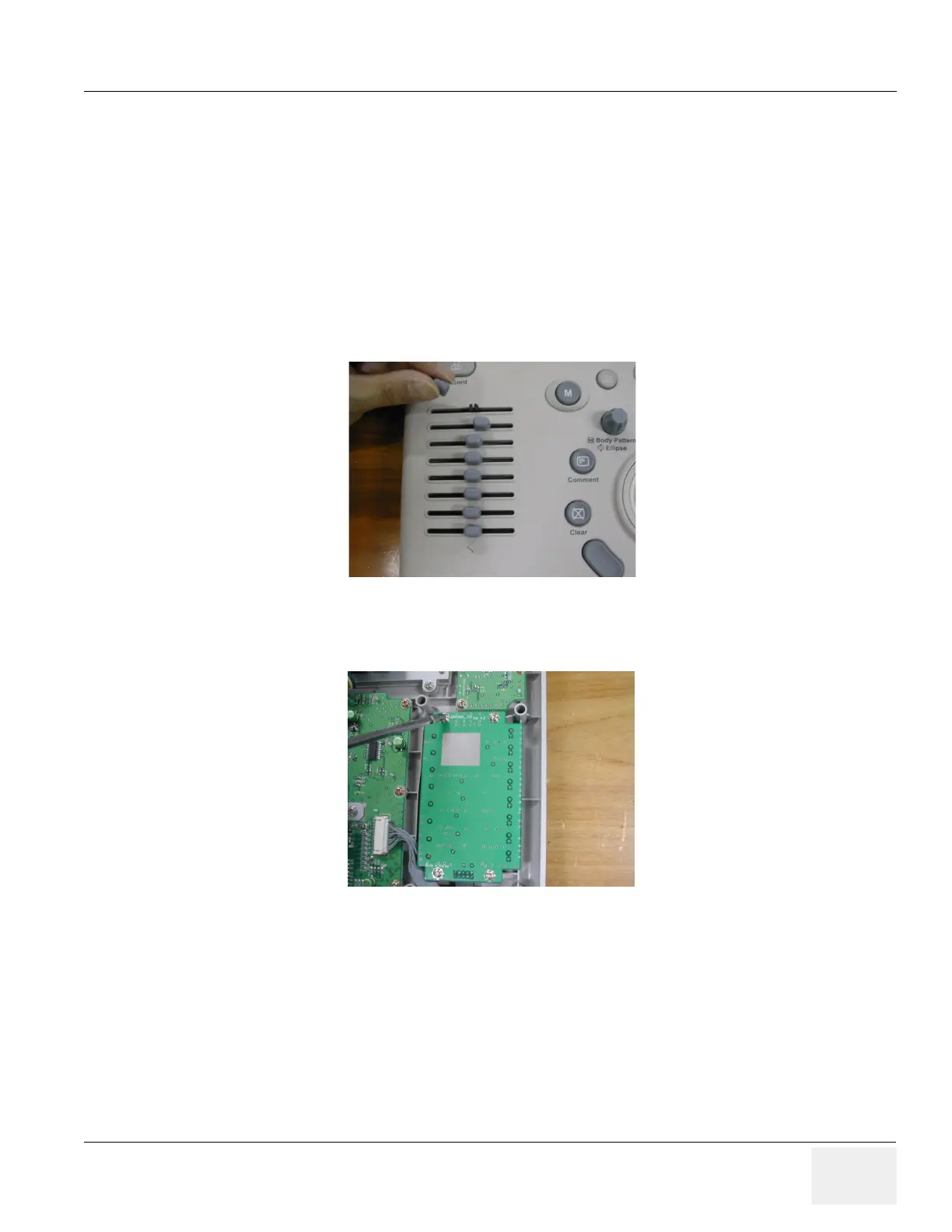

Figure 8-79 8 TGC Knobs
Figure 8-80 TGC PCB Assy in Keyboard
