GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-5
8-2-2 Monitor cover set
8-2-2-1 Tools
Common pilIips screwdrivers
Allen/Unbraco wrench
Stubby screwdriver (Flat tip and Cross tip)
8-2-2-2 Removal procedure
1.) Remove the LCD cable cover.
2.) Unscrew 1 screw (2306565, BH M4x16 WHT) to remove the power cord bracket assembled under
the LCD cable cover.

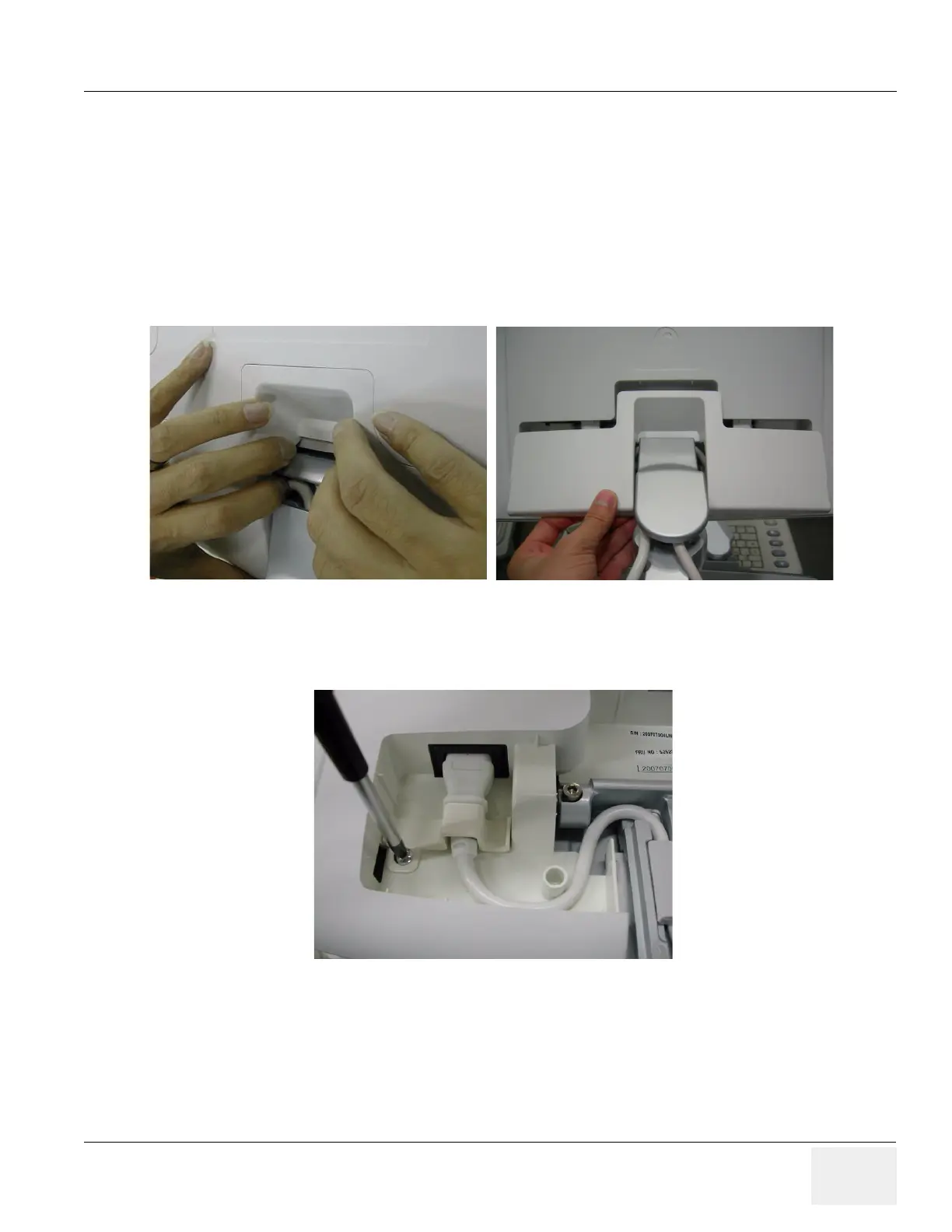

Figure 8-4 Removing the LCD cable cover
Figure 8-5 Removing the power cord bracket
