8-188 Section 8-7 - Mechanical Option Installation instruction
8-7-7 BW printer Fixture Middle installation
1.) Install BW Printer on the top of the base bracket by screwing 4 screws(2306562, FH M3x6 YEL).
2.) Unscrew 2 existing screw from the middle cover.
3.) Place the BW printer with base bracket on the middle cover and screw 2 screws(5176744, BH
M4x20 WHT) to fix it.

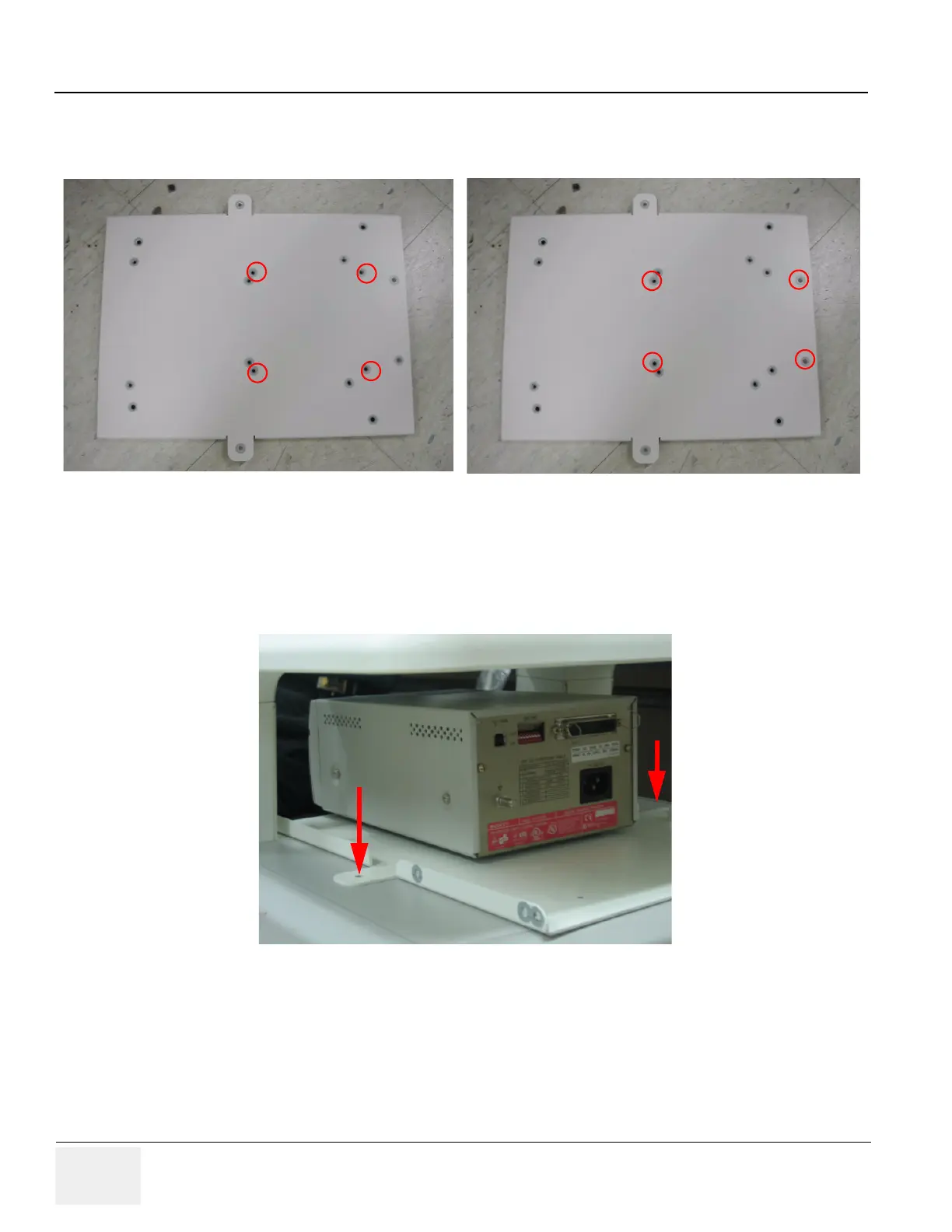

Figure 8-264 BW Printer Fixture Middle installation
Figure 8-265 BW Printer Fixture Middle installation
SONY UP-D897
Mitsubishi P93DW

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
