GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
4-28 Section 4-6 - Monitor Function Checks
4-6-2 15" OSD Key Assy Function Validation Procedure
1.) Turn on the system.
2.) Select “OSD Button” and “Lamp Button” marked below in the figure below.
3.) OSD Menu should be displayed within 5sec and the Lamp should be turned on as soon as Lamp
Button is pushed.
4.) Select “OSD Button” marked below in the figure below and check that contrast value is changed as
soon as the button pushed.
5) Displayed value should be changed as soon as the button pushed.

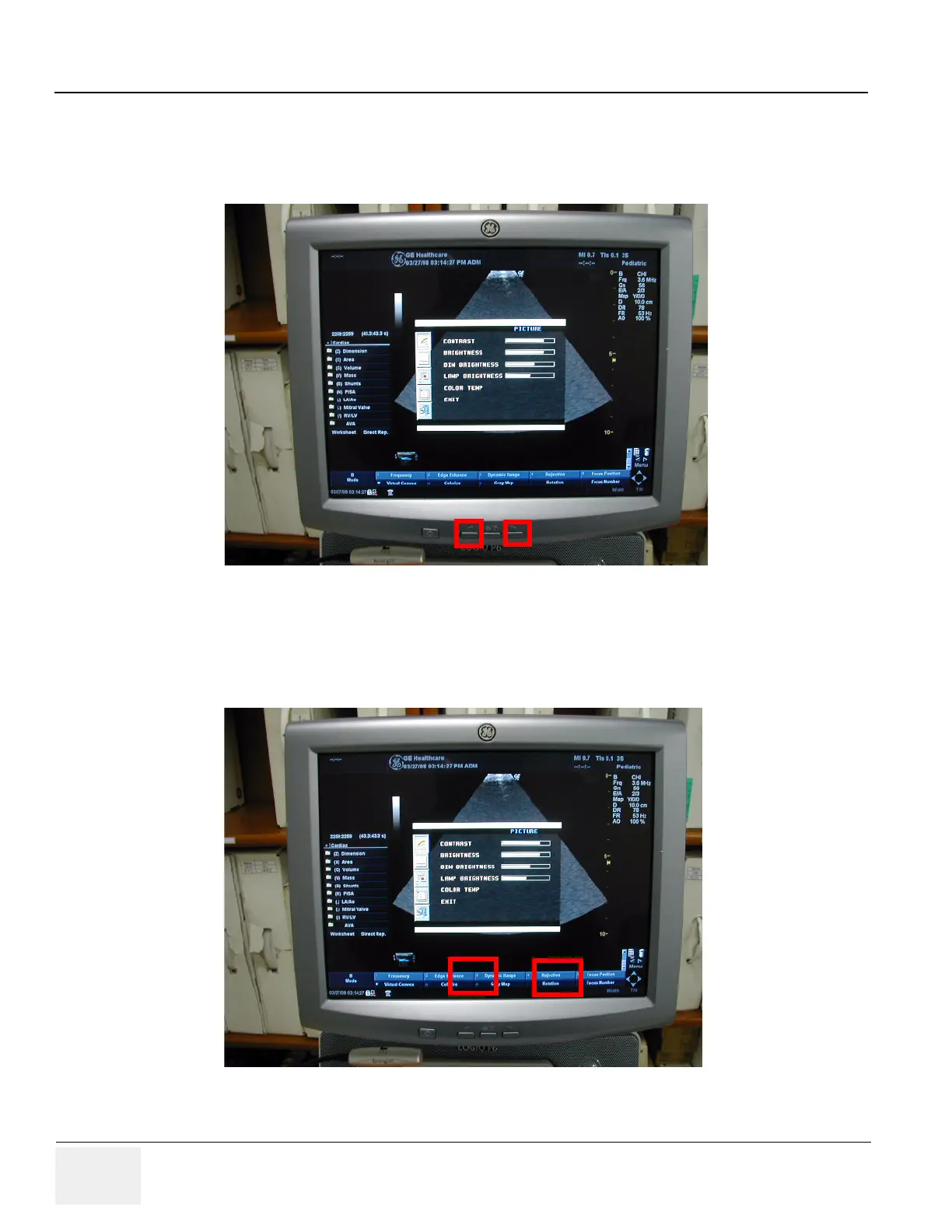

Figure 4-24 Select OSD Button & Lamp Button
Figure 4-25 Select OSD Button
Lamp Button
OSD button for
menu display
OSD button for adjusting values

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
