8-2-40 Probe Holder
8-2-40-1 Tools
• No need tool
8-2-40-2 Removal procedure
1.) Remove the probe holders from the Keyboard.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-40-3 Mounting Procedure
Install the new parts in the reverse order of removal.

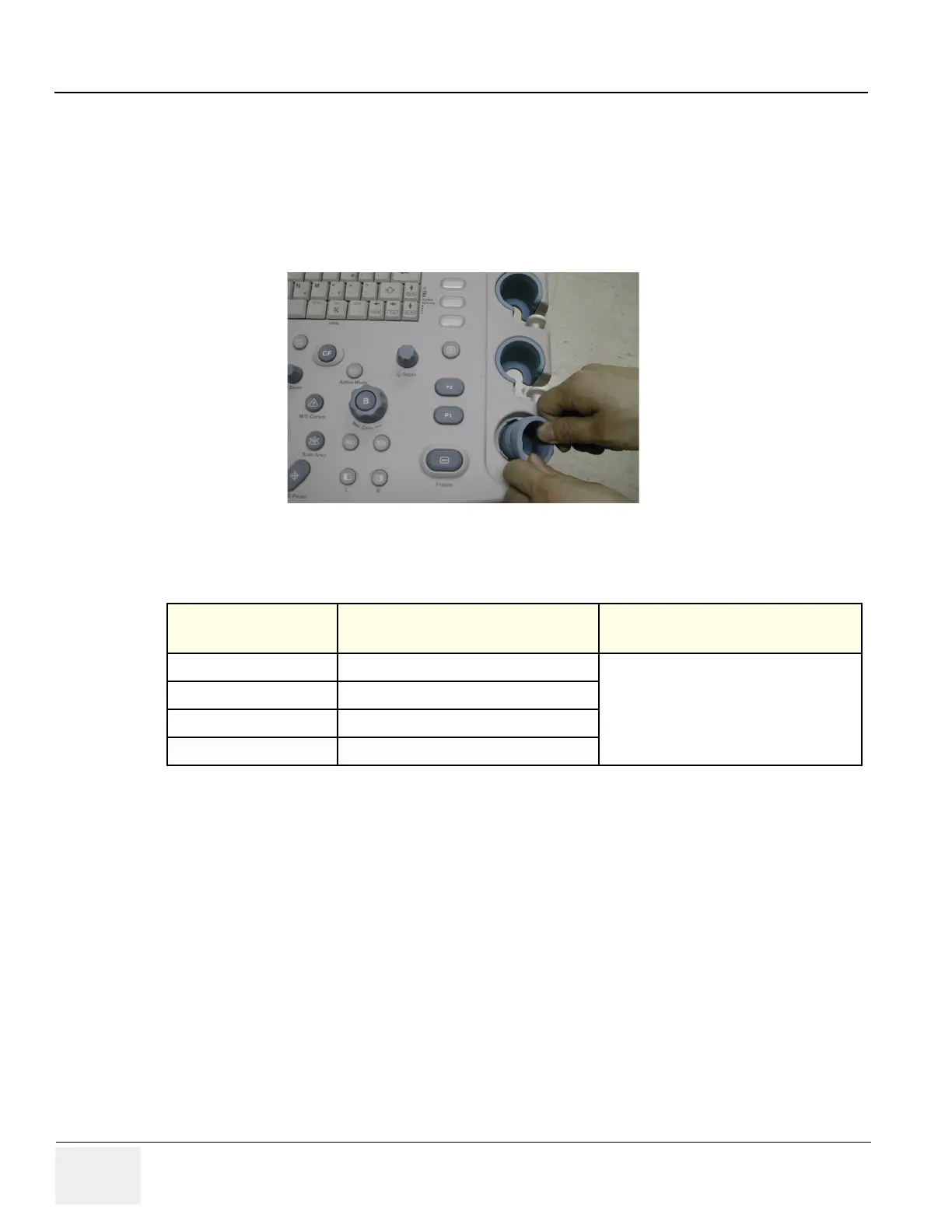

Figure 8-130 Probe Holders
Table 8-41 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-40. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-7
Probe holder Function Validation Procedure
Section 10-5-5
Physical Inspection
