DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-136 Section 8-4 - Software Installation
8-4-2 Verifying Base Image Software
8-4-2-1 Partition Checks
1.) Reboot the SYSTEM and the Desktop screen will be shown as blow.
2.) Click
Start button and Run menu, then type explorer and click OK
3.) Right-click My Computer icon on the Desktop and click Manage.

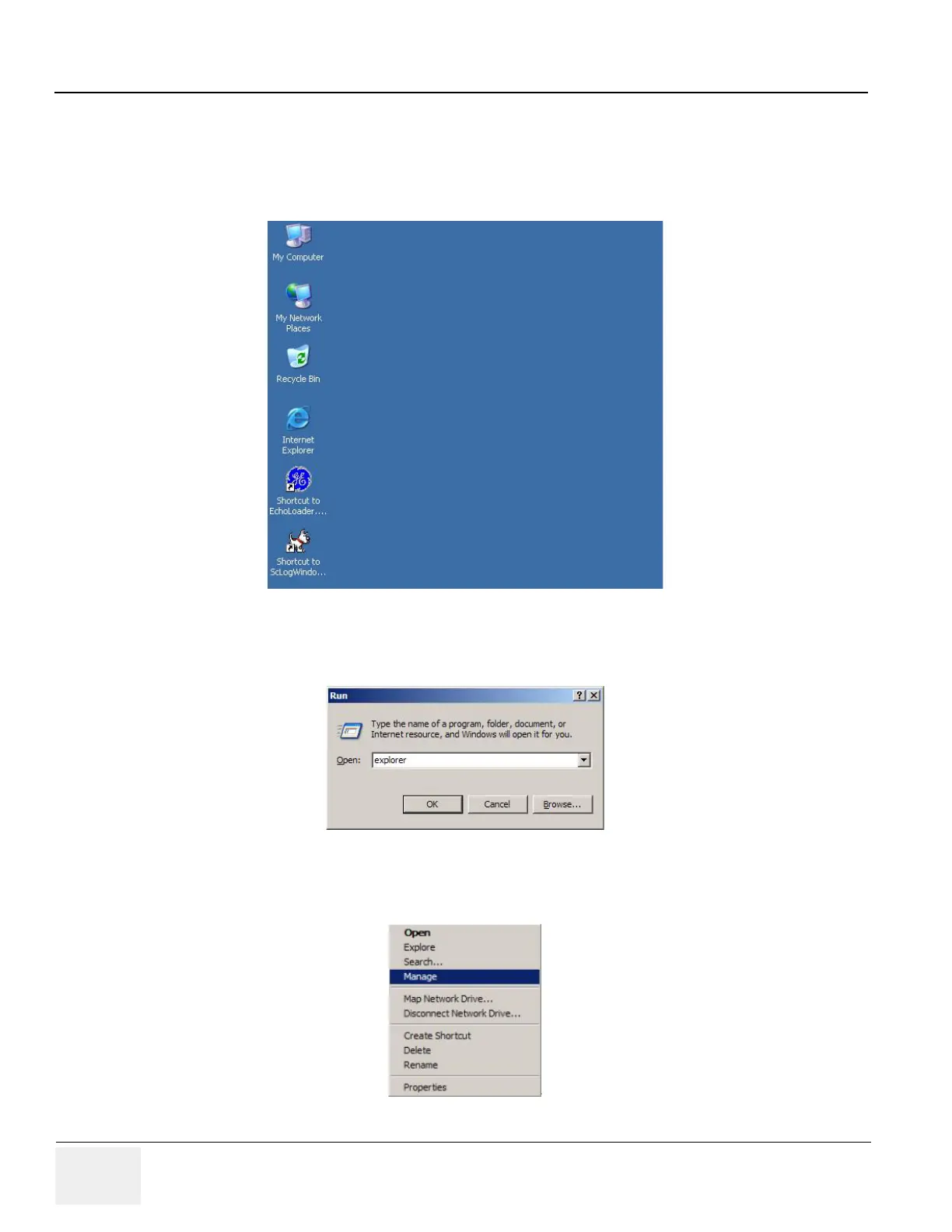

Figure 8-188 Desktop Screen
Figure 8-189 Executing Windows Explorer
Figure 8-190 Opening the Manage Window

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
