GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-49
8-2-13 Sub Keyboard Encoder Knob Set
8-2-13-1 Tools
• Common pilIips screwdrivers
8-2-13-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-13-3 Removal procedure
1.) Remove all the Encoder Knobs from the keyboard.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-13-4 Mounting Procedure
Install the new parts in the reverse order of removal.

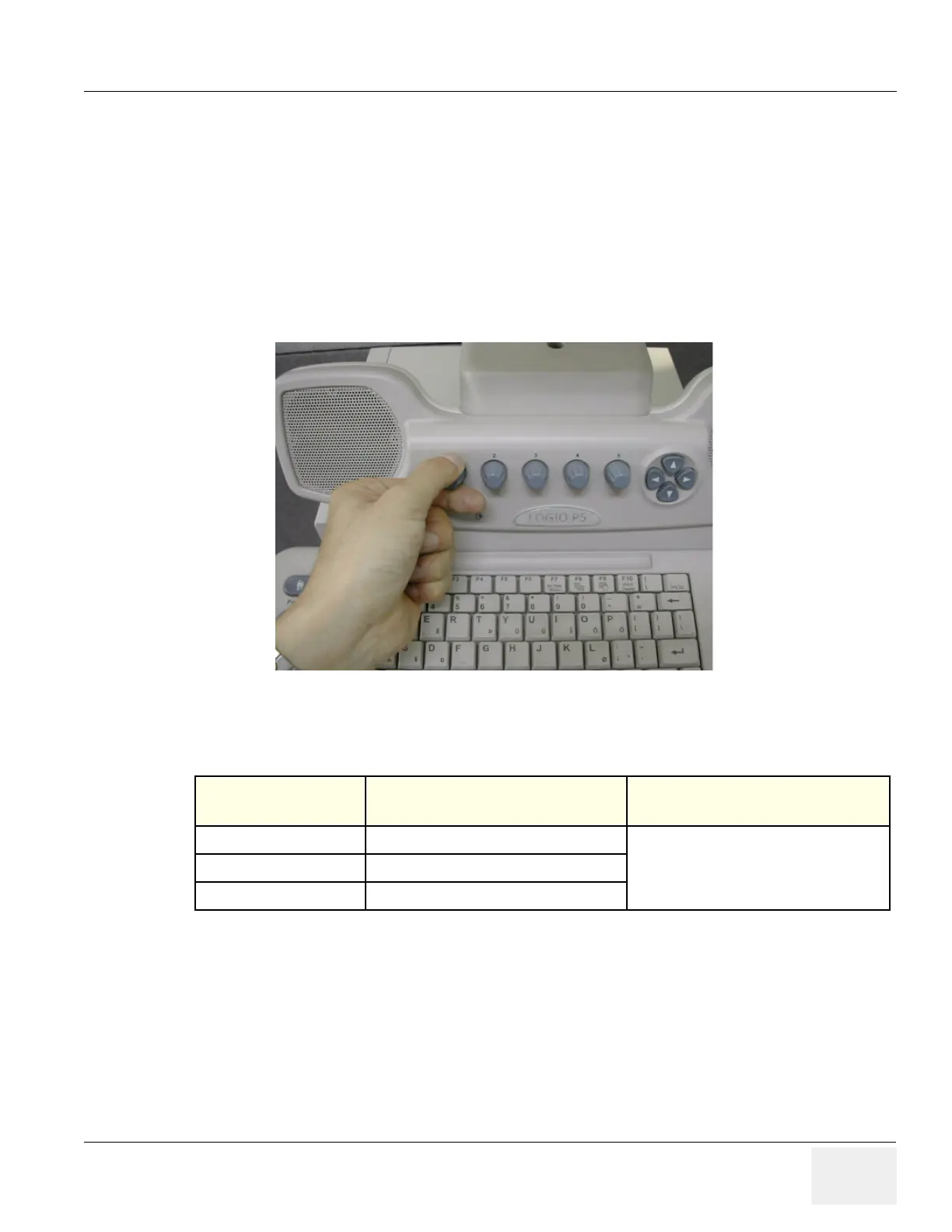

Figure 8-82 Knob in Sub Keyboard
Table 8-14 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-13. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-7-7
Sub Keyboard Encoder Knob Set validation
