GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
6-6 Section 6-3 - Monitor Adjustments
6-3-4 Flexible LCD arm - locking mechanism
Flexible LCD arm’s rotation movement can be adjusted by using the LCD arm’s locking mechanism.
To unlock the LCD arm:
1.) Pull the LCD arm toggle knob and turn clockwise to unlock the LCD arm.
To lock the LCD arm :
1.) Turn counter clockwise and push the LCD arm toggle knob and to lock the LCD arm.

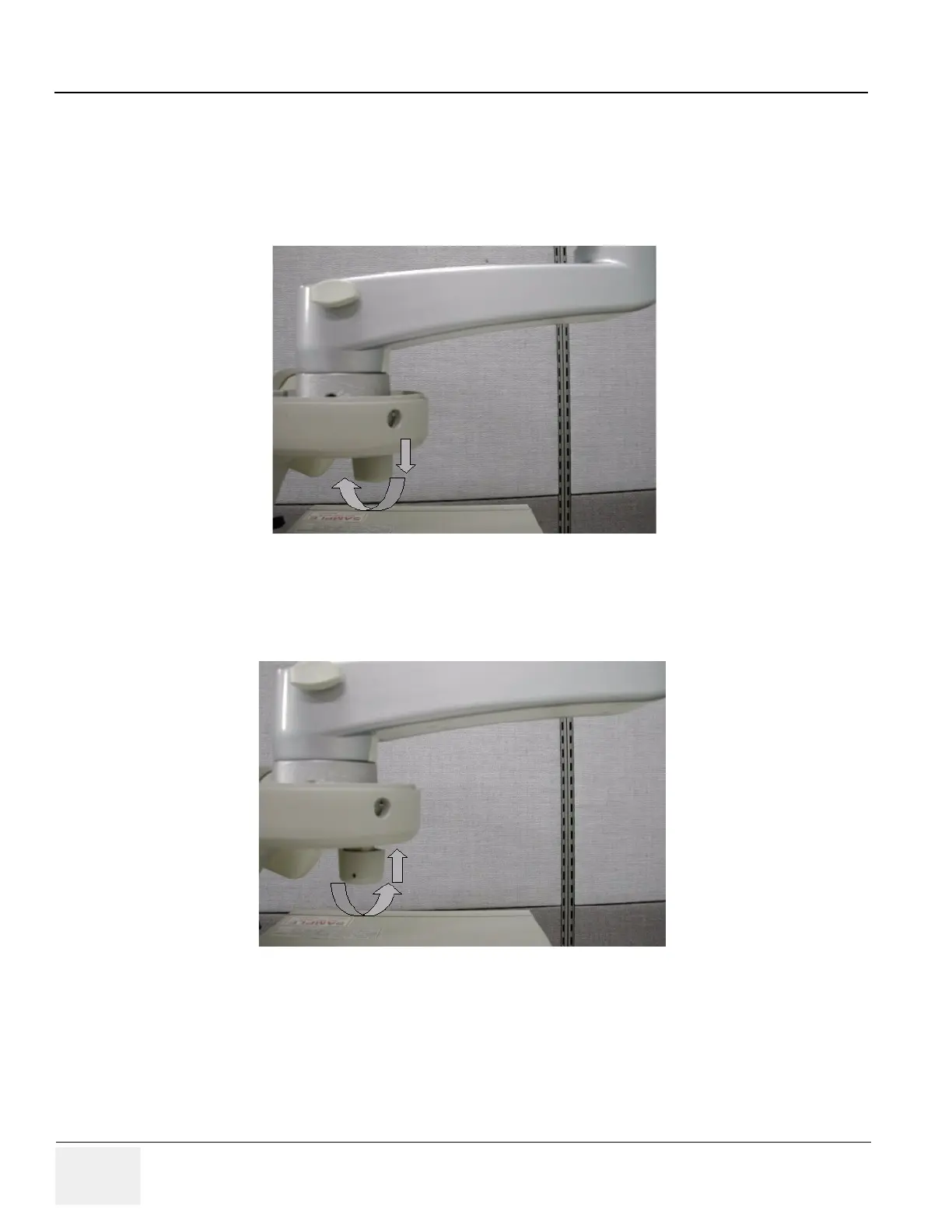

Figure 6-6 Unlocking the Flexible LCD arm
Figure 6-7 Locking the Flexible LCD arm
