GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-106 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-47 SATA HDD Assy
8-2-47-1 Tools
Common pilIips screwdrivers
8-2-47-2 Preparations
Shut down the system and switch off the main breaker.
8-2-47-3 Removal procedure
1.) Remove the side left cover. Refer to the 8-2-15 "Side Left Cover" on page 8-51.
2.) Remove EMI L Cover. Refer to the 8-2-26 "EMI Cover L" on page 8-68.
3.) Disconnect the HDD power cable and unscrew 4 screws of the HDD fixture bracket.

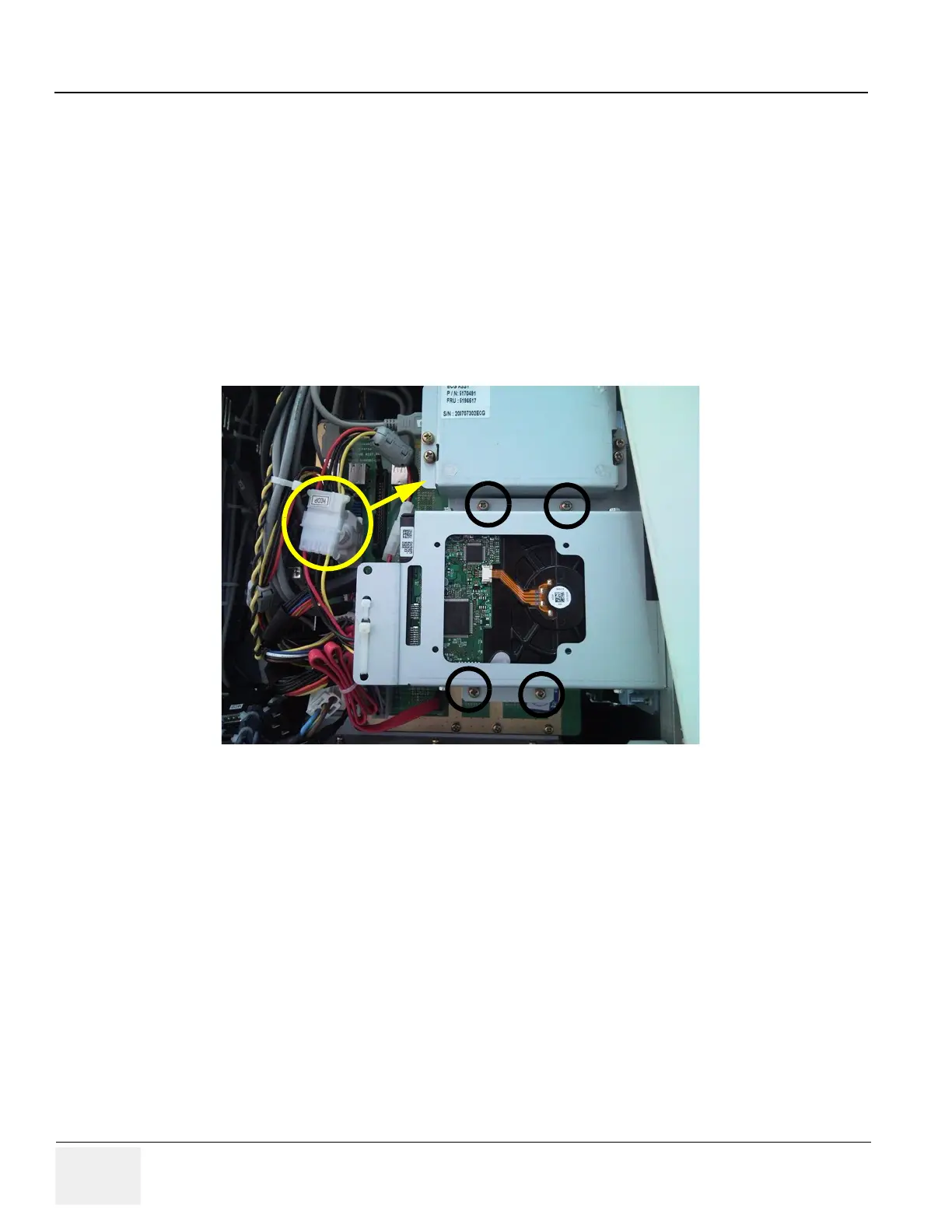

Figure 8-143 HDD in System
HDD Power Cable
