8-180 Section 8-7 - Mechanical Option Installation instruction
8-7-2 Microphone Option fixture Installation
1.) Use 2 holes at the bottom of the keyboard.
2.) Screw 2 screws (5178673, FH M4x6 WHT) to fix the Microphone fixture.

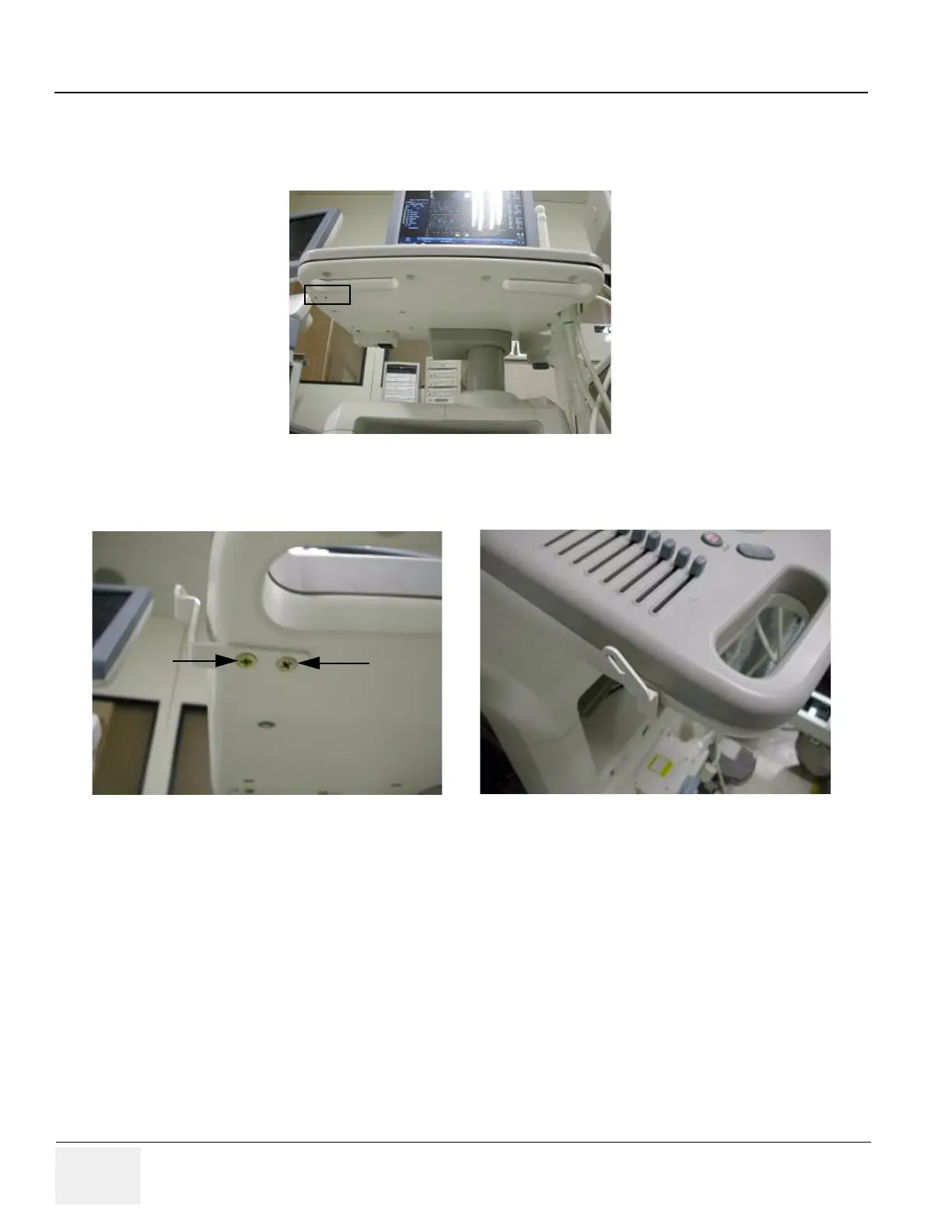

Figure 8-248 Microphone option holes
Figure 8-249 installation of Microphone
