DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
4-46 Section 4-9 - Board Function Checks
4-9-3 Probe Assessment Diagnostic Test Validation Procedure (cont’d)
7.) If the test is executed without probe connection, the test shows the following result.
8.) After finishing the test, shut down the system.

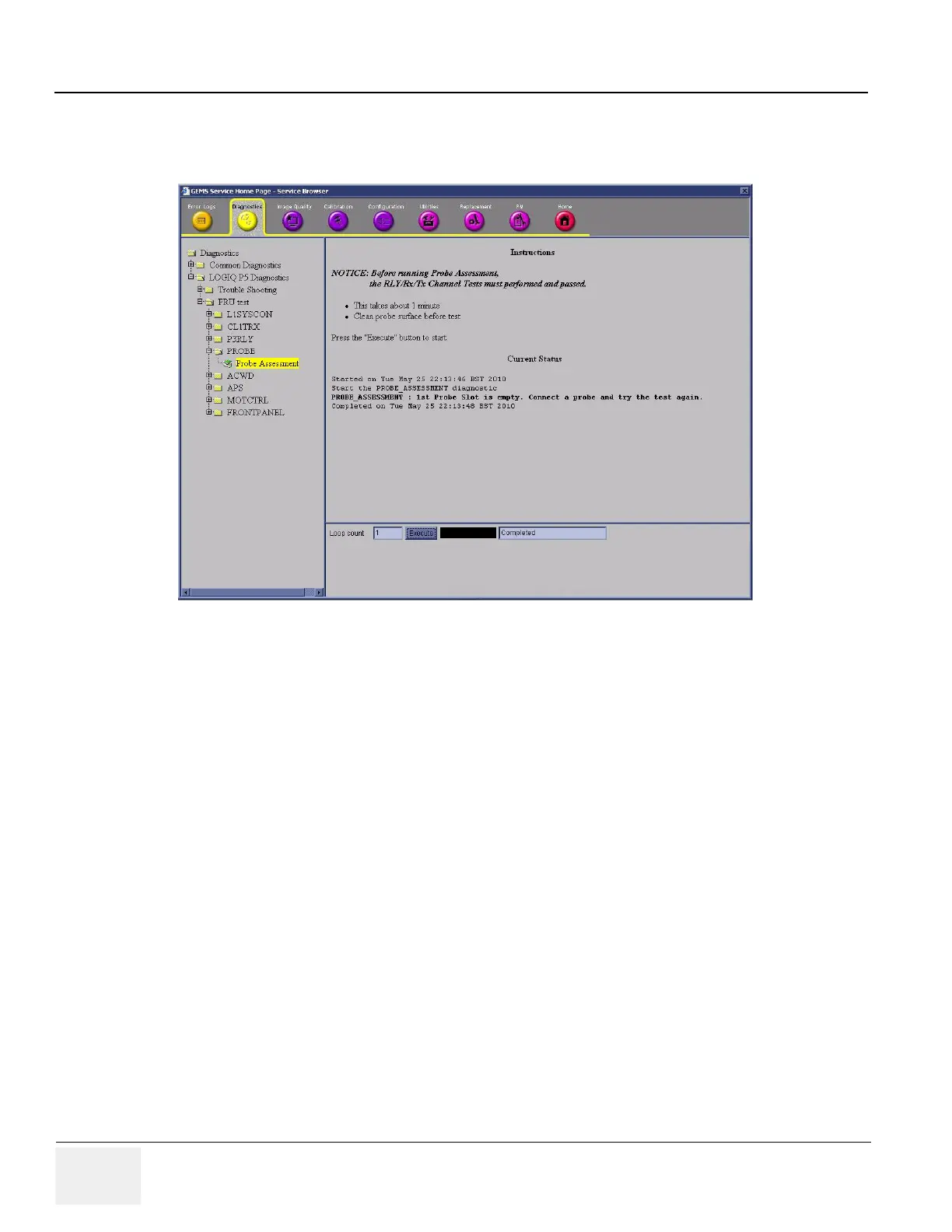

Figure 4-45 Probe Assessment Diagnostic Test
