GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 4-7 - Keyboard Function Checks 4-29
Section 4-7Keyboard Function Checks
4-7-1 Main Keyboard Assy Function Validation Procedure
1.) Boot up the system.
2.) Insert the Service Dongle and go to the maintenance mode.
3.) Click 'Start' and go to 'Run'.
4.) Click the Run and then you can get the 'Run' dialog box.
5.) Write the 'cmd 'command into 'Run' dialog box and press 'OK' button to display command prompt.

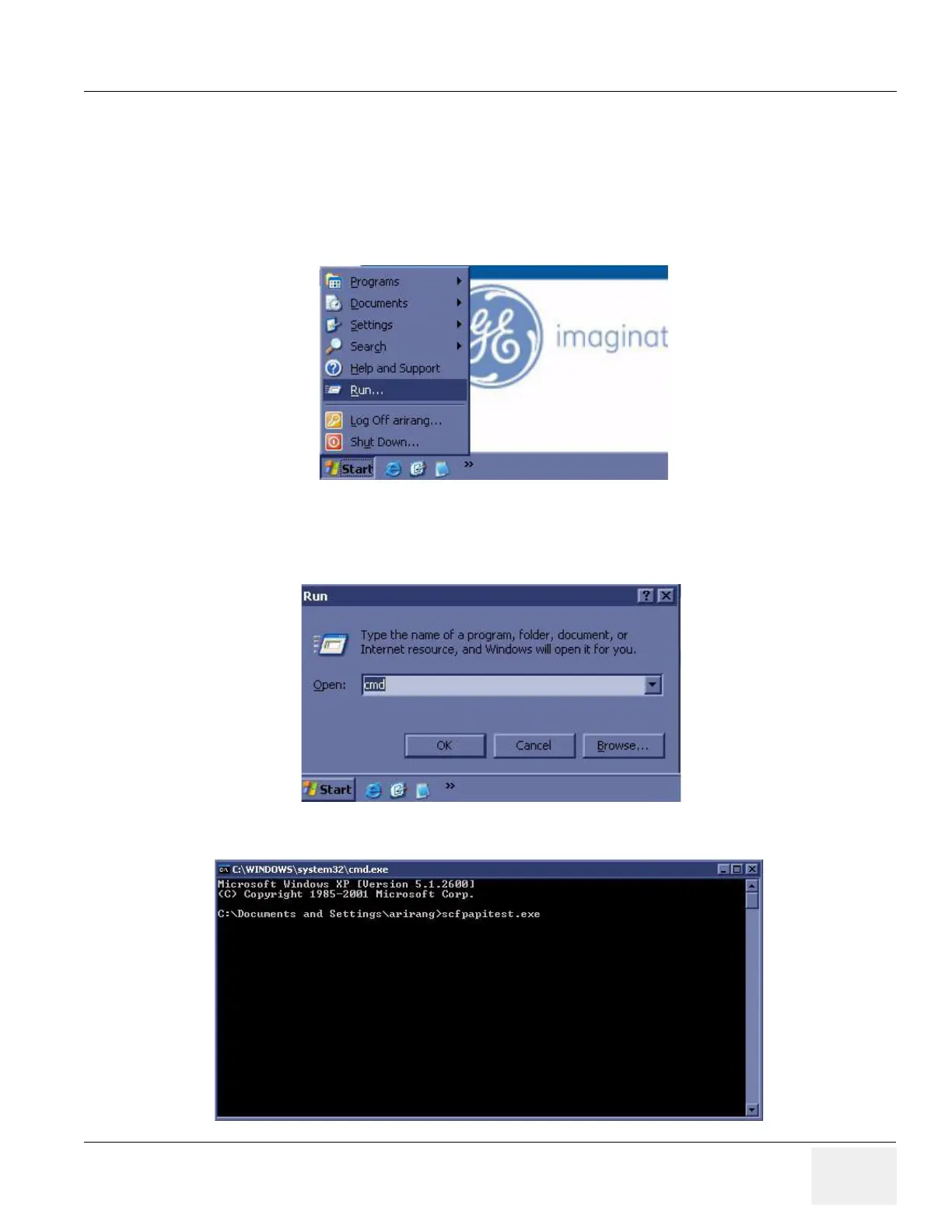

Figure 4-26 Start and run
Figure 4-27 Run dialog box
Figure 4-28 command prompt

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
