GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
5-42 Section 5-10 - Service Platform
5-10-3 Service Home Page
When the Service Interface is started, the Service Home Page appears. The Home Page contains the
software revision along with the hardware inventory and the results of the latest System Health
Information. The navigation bar at the top of the screen allows the user to select from several tools and
utilities.

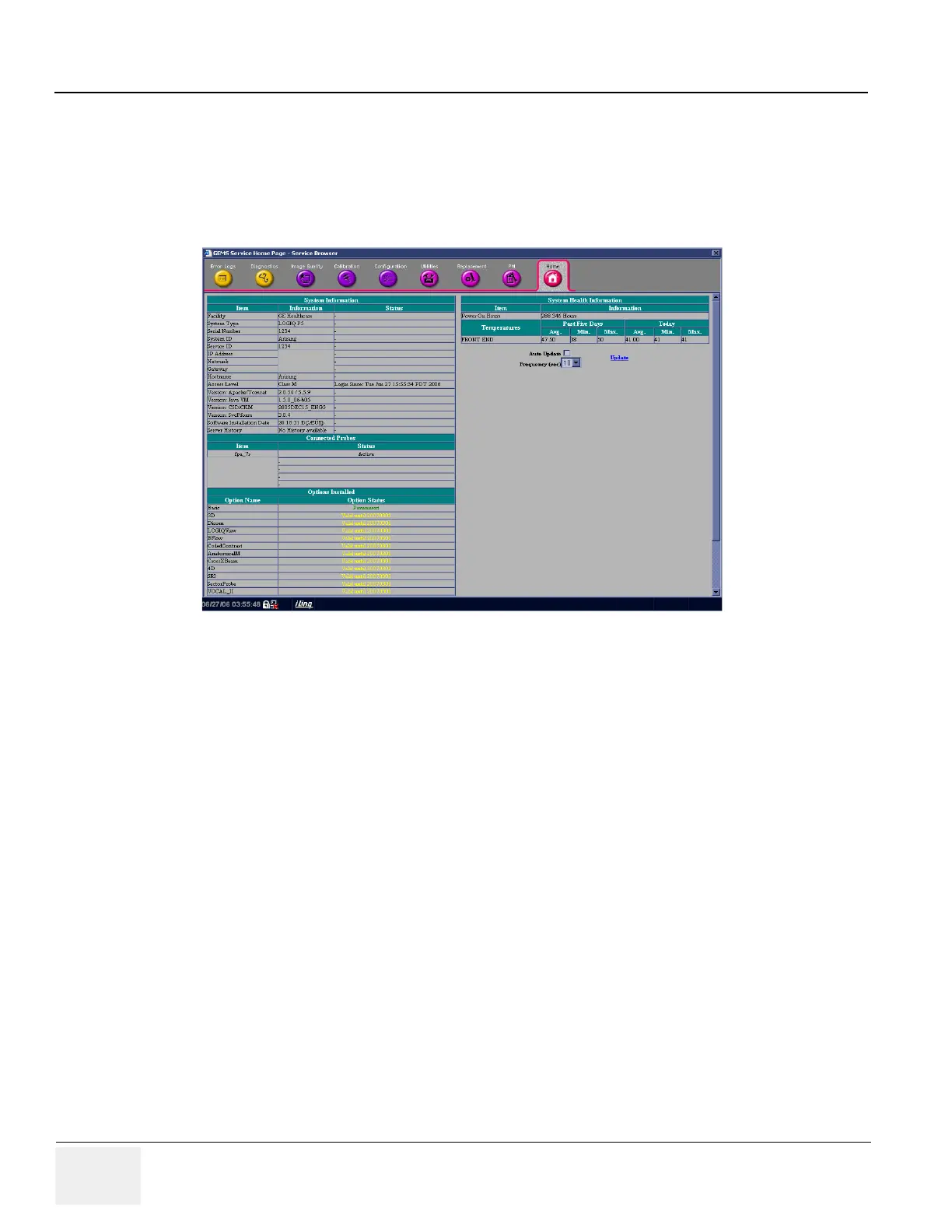

Figure 5-40 GE Service Home Page

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
