GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
7-32 Section 7-7 - Trouble Shooting Tree
7-7-7 Unable to Record to VCR

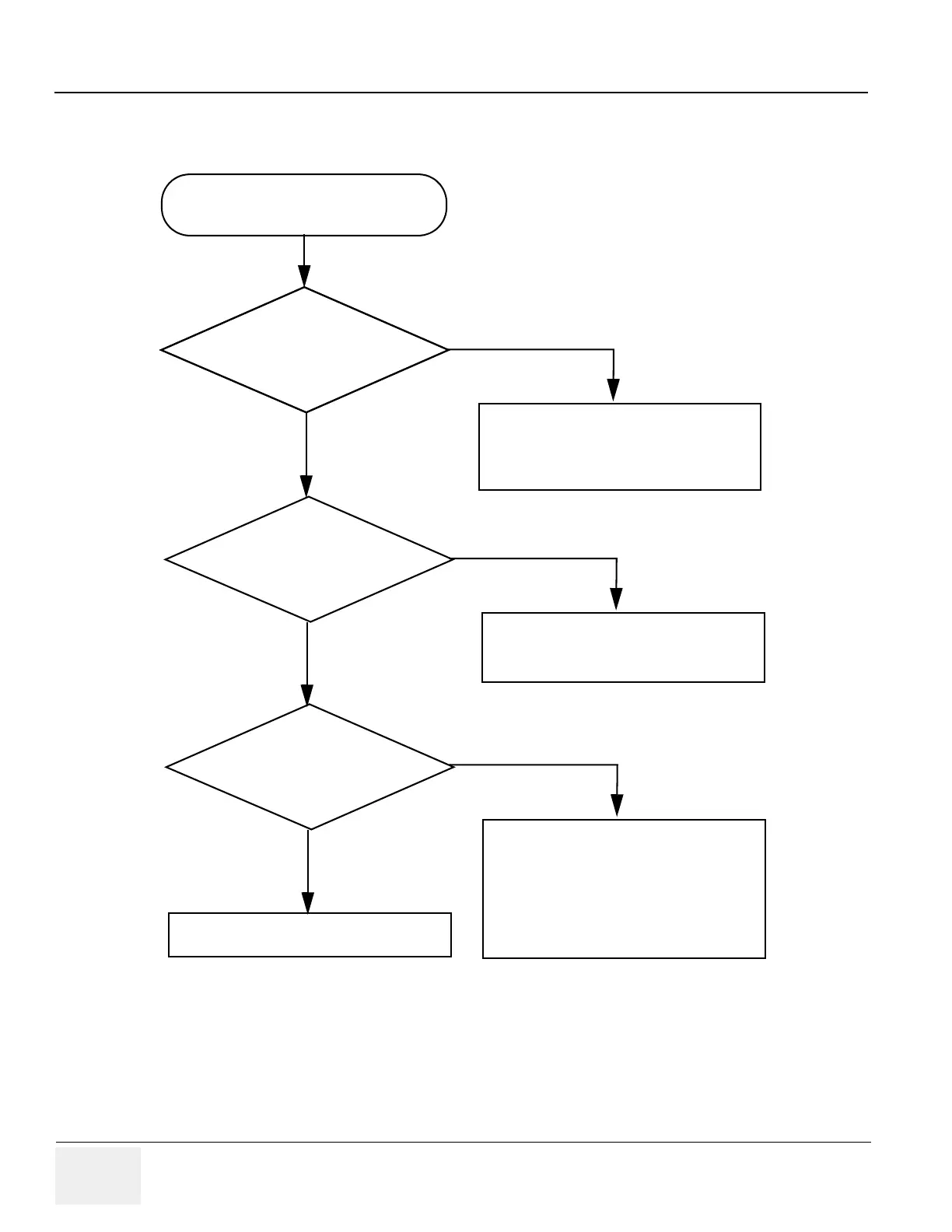

Figure 7-18 VCR Troubleshooting
Unable to record to VCR!
Check that all signal, and power
supply cable connections to the VCR
unit are OK.
YES
NO
Is the VCR properly
connected?
Is the VCR tape put into
the device?
Put the tape into the device and
rewind it.
NO
YES
Replace VCR.
Is recording unable even
by manual operation?
YES
- Check the signal cable connections
between VCR and Internal I/O.
- Check the cables between BEP and
Internal I/O
NO

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
