8-7-19 LOGIQ A5 Rear Swivel Caster Installation
1.) Refer to the figure below for the location of the Rear Swivel Caster to be installed.
2.) Lift the system up front and fix it not to move during installation.
3.) Unscrew 8 screws (1-8) to remove the existing front casters. Refer to the figure below. keep the
screws for use.
4.) Replace them to Rear Swivel Casters by screwing 8 screws (1-8).

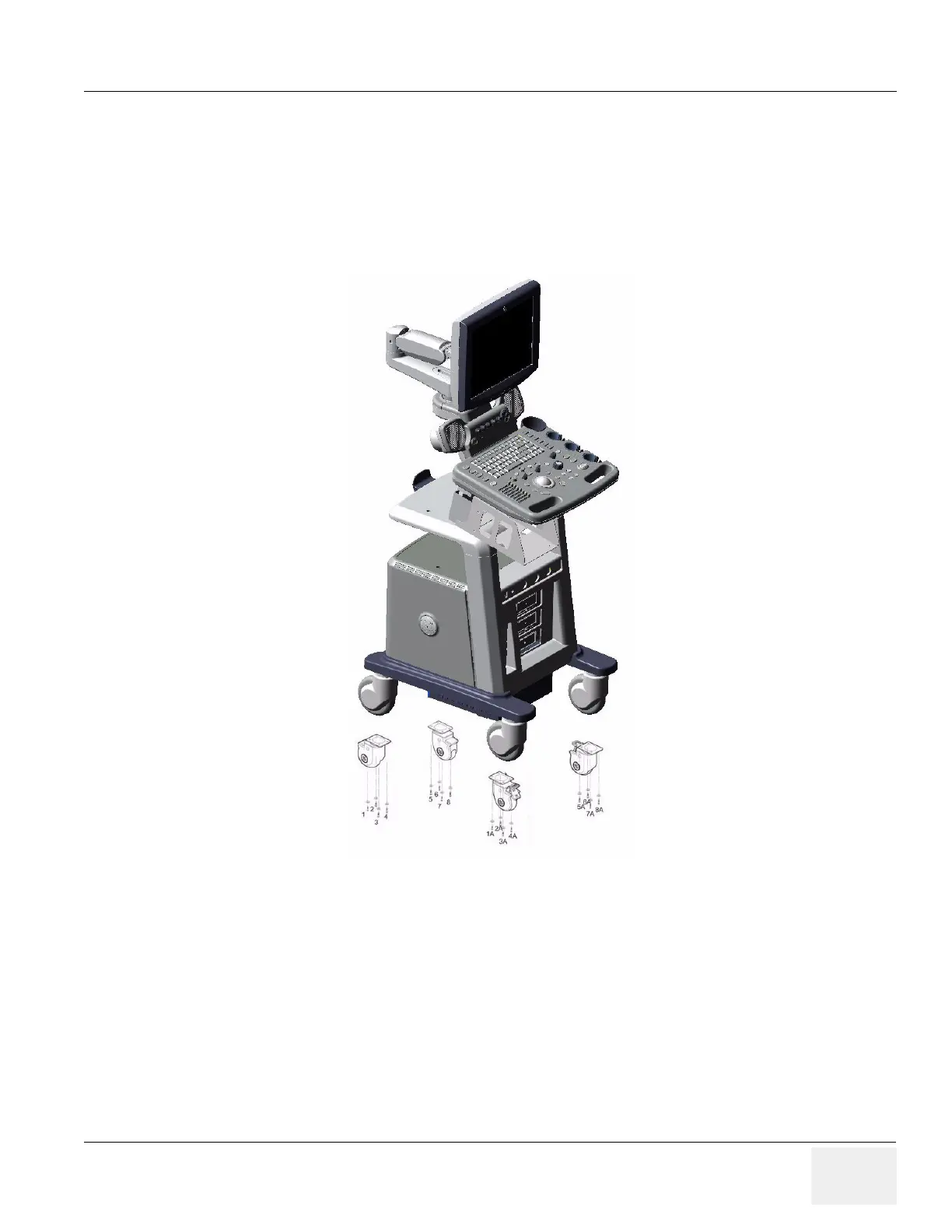

Figure 8-331 Rear Swivel Caster
