GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-199
8-7-12 Printer VCR DVD fixture Top installation - CP900 Printer
1.) Unscrew 2 existing screws from the top cover.
2.) Install Fixture VCR bot bracket on the top cover by screwing 2 screws(2306565, BH M4x16 WHT).
3.) Install color printer to the VCR top bracket by screwing 4 screws(5161586, M3x8 WHT).

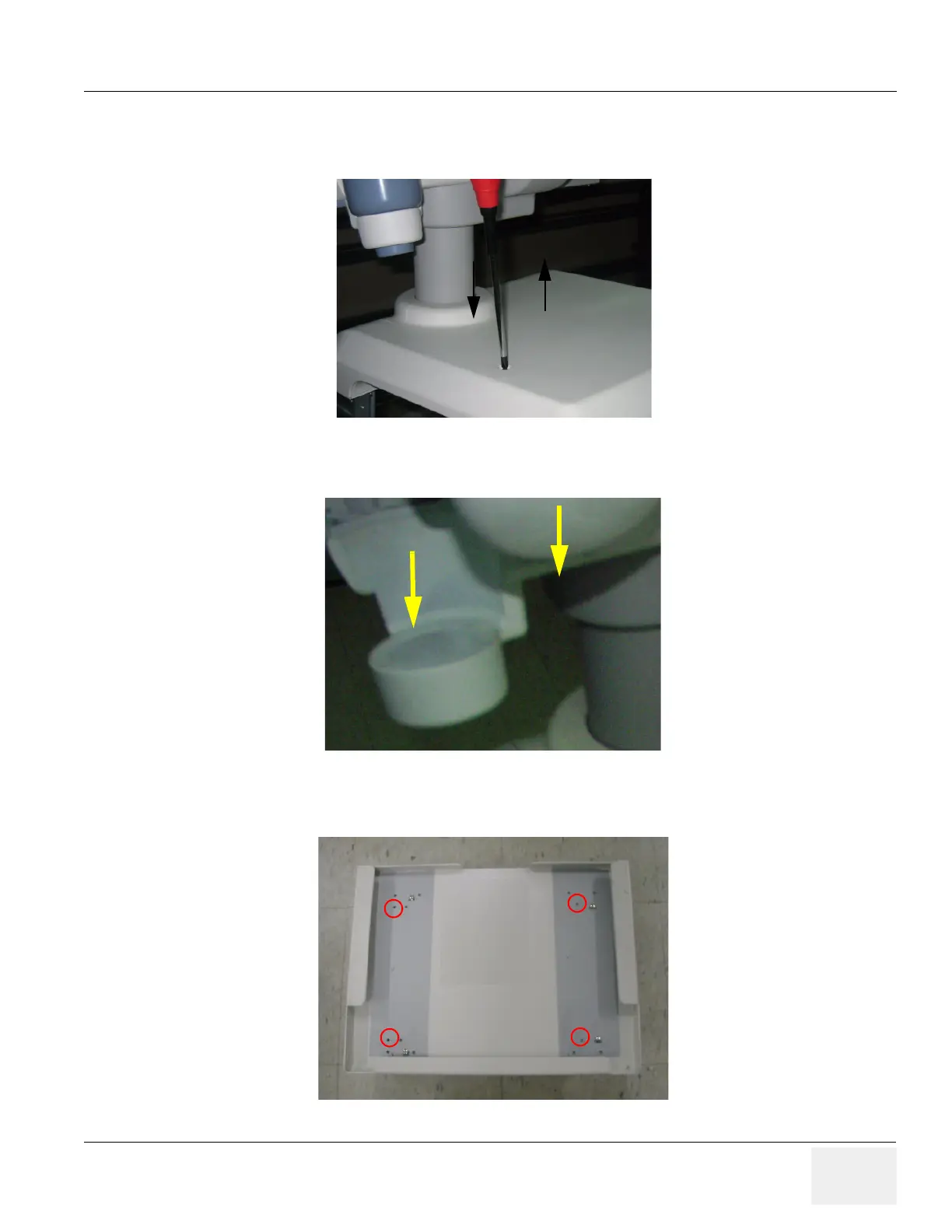

Figure 8-291 Printer VCR DVD Fixture Top installation
Figure 8-292 Printer VCR DVD Fixture Top installation
Figure 8-293 Printer VCR DVD Fixture Top installation
