GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 5-9 - Filters 5-39
Section 5-9Filters
5-9-1 Filters
The scanner contains the two filters located at
a.) Right side of TRANSBOX to protect TRANSBOX and NEST from dust.
b.) Left side of TRANSBOX to protect TRANSBOX and NEST from dust.
5-9-2 Fans
The scanner contains the 5 fans at the following positions for producing an air flow.
a.) One fan : On the surface of heat sink for SOM heat.
b.) Two fans : At the top of the APS/APS Pro for APS/APS Pro heat.
c.) Two fans : At the top of the NEST for NEST Assy and AC Power assy.

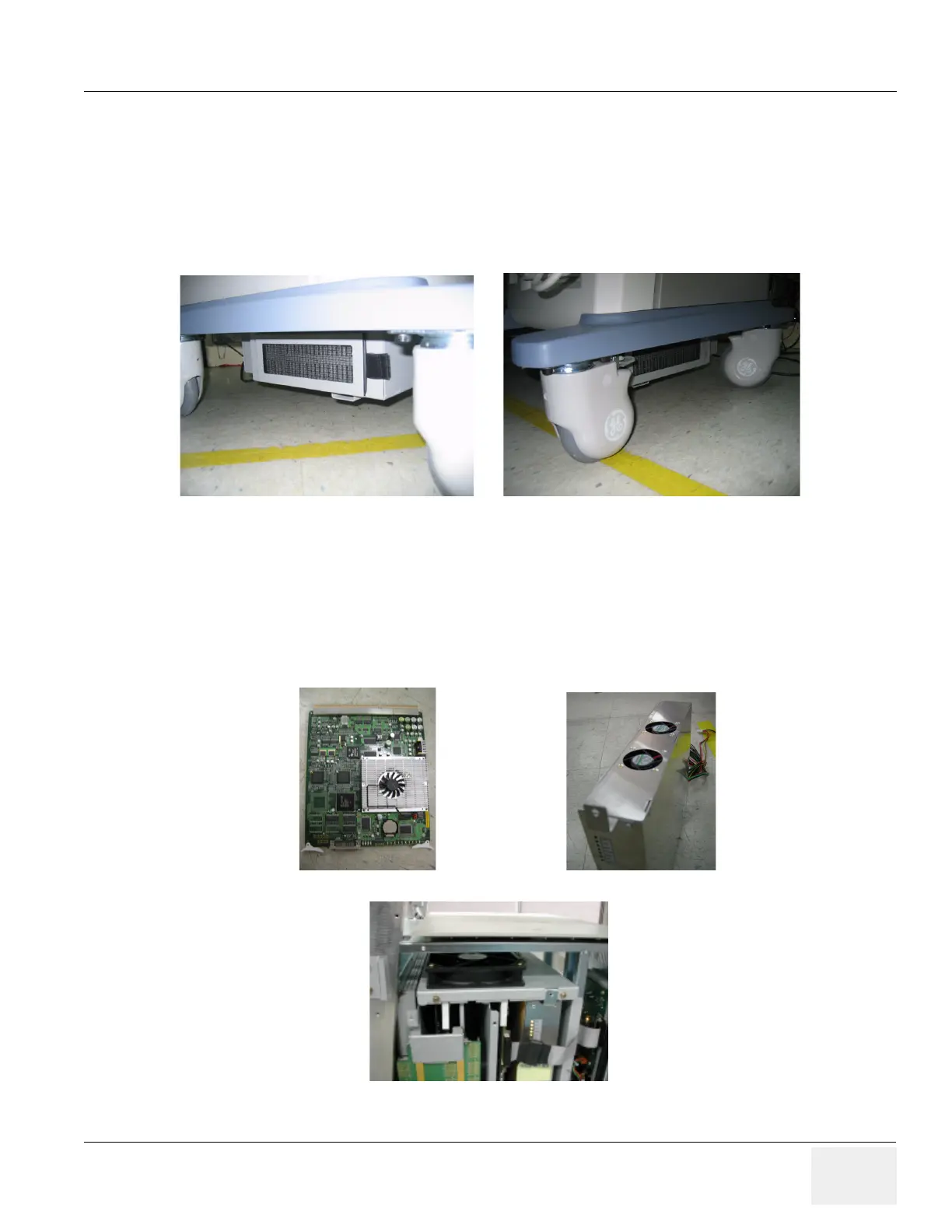

Figure 5-37 Location of Air Filter
Figure 5-38 Location of Fans
(a)
(b)
(c) Cooling FAN Assy for NEST Cooling
(a) Cooling Fan on SYSCOMPM(SYSCONCM)
(b) Cooling Fans on APS
