DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
5-38 Section 5-8 - Cable Connection
5-8-3-3 Cable Connection - DVD Recorder
Connect the cable listed below between the SONY DVDR and the console.

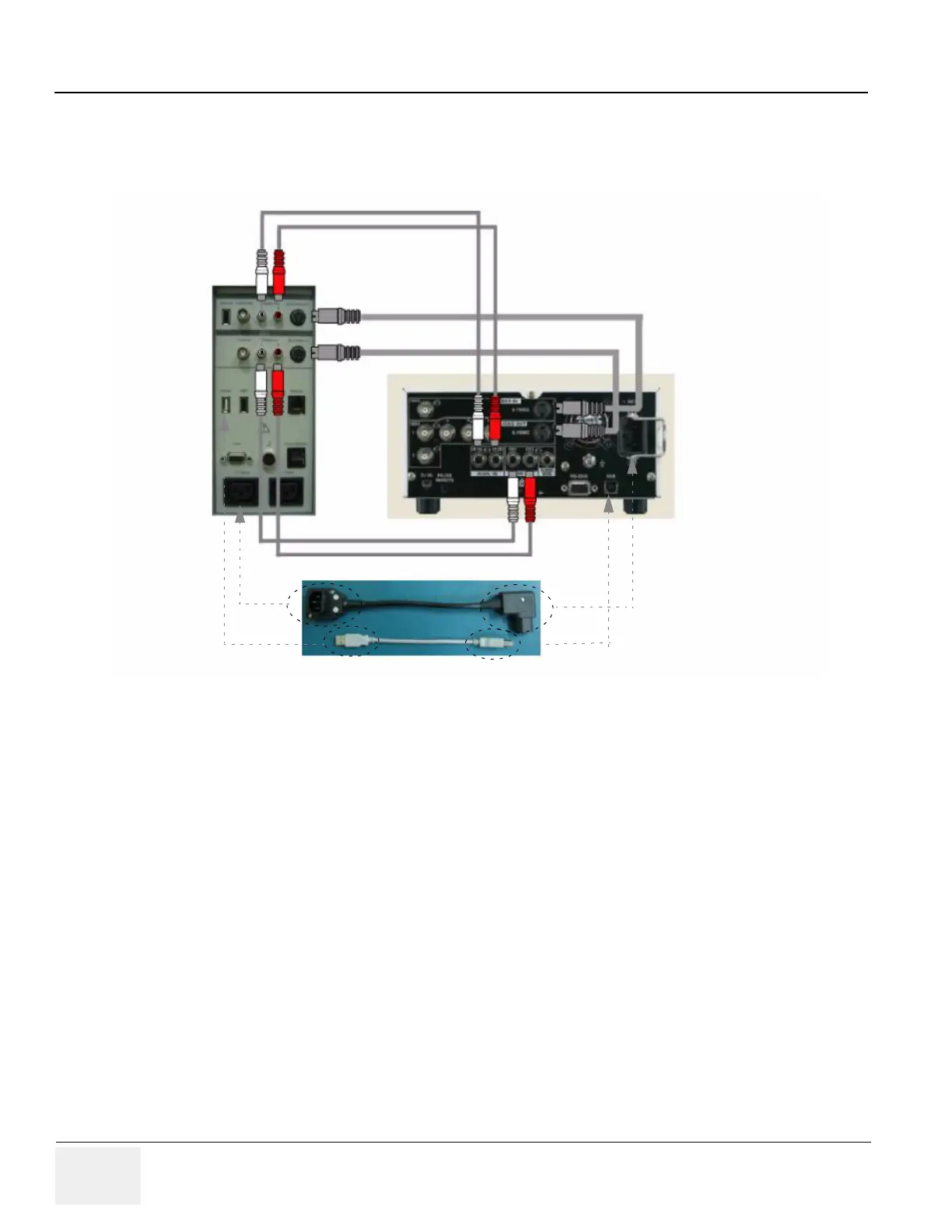

Figure 5-36 Cable Connection - DVD Recorder
Audio cable with RCA Jack
S-Video Cable
S-Video Cable
Audio cable with RCA Jack
