GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-62 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-22 Pole Cover
8-2-22-1 Tools
• Common pilIips screwdrivers
8-2-22-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-22-3 Removal procedure
1.) Remove the Dummy Cover L/R. Refer to the 8-2-25 "Dummy Cover L / R" on page 8-66.
2.) Remove the Top Bottom Cover. Refer to the 8-2-21 "Top Bottom Cover" on page 8-60.
3.) Remove the Top Cover. Refer to the 8-2-20 "Top Cover" on page 8-59.
4.) Unscrew 2 screws (1-2).
5.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-22-4 Mounting Procedure
Install the new parts in the reverse order of removal.

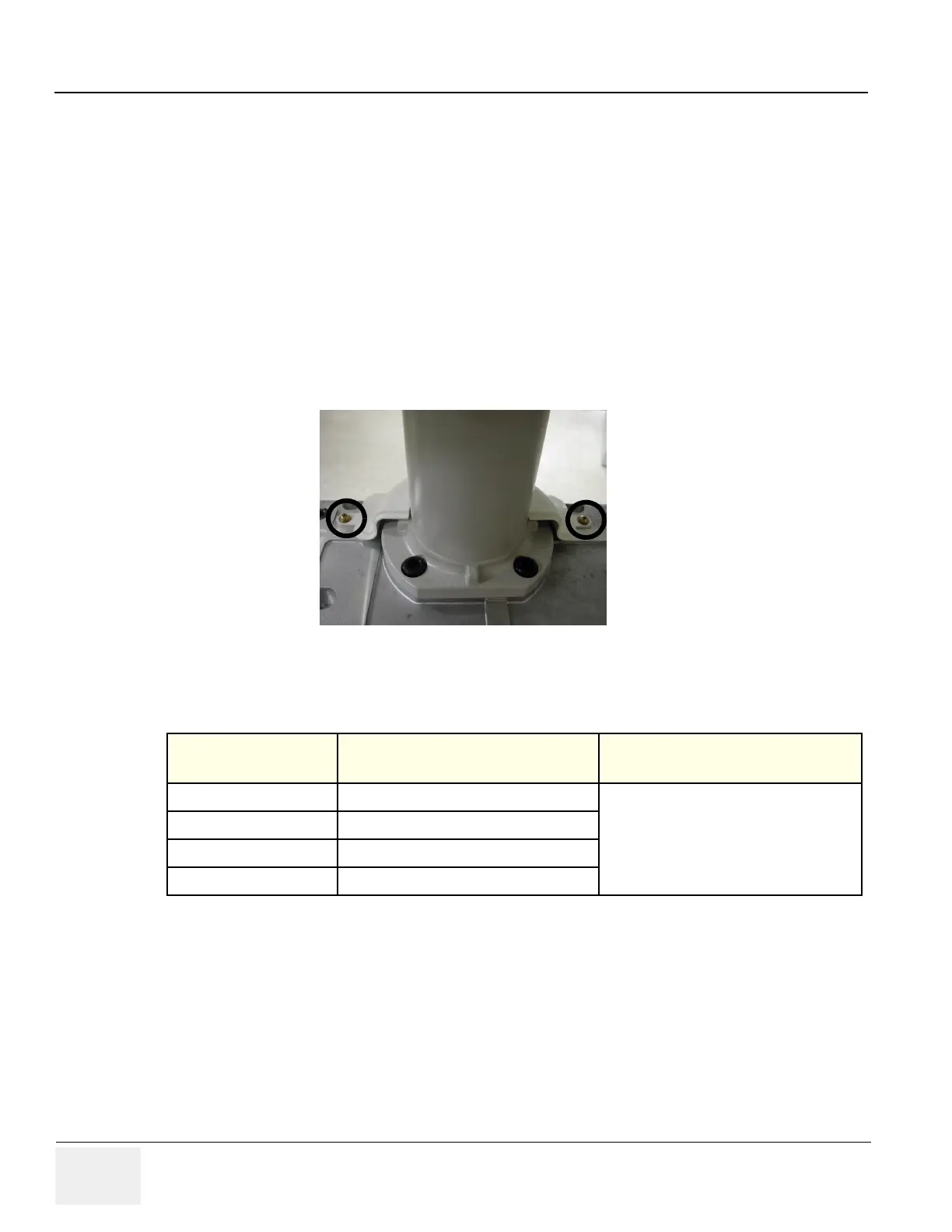

Figure 8-97 Pole Cover
Table 8-23 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-22. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
(1)
(2)

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
