7-24 Section 7-7 - Trouble Shooting Tree
7-7-2 System Does Not Boot

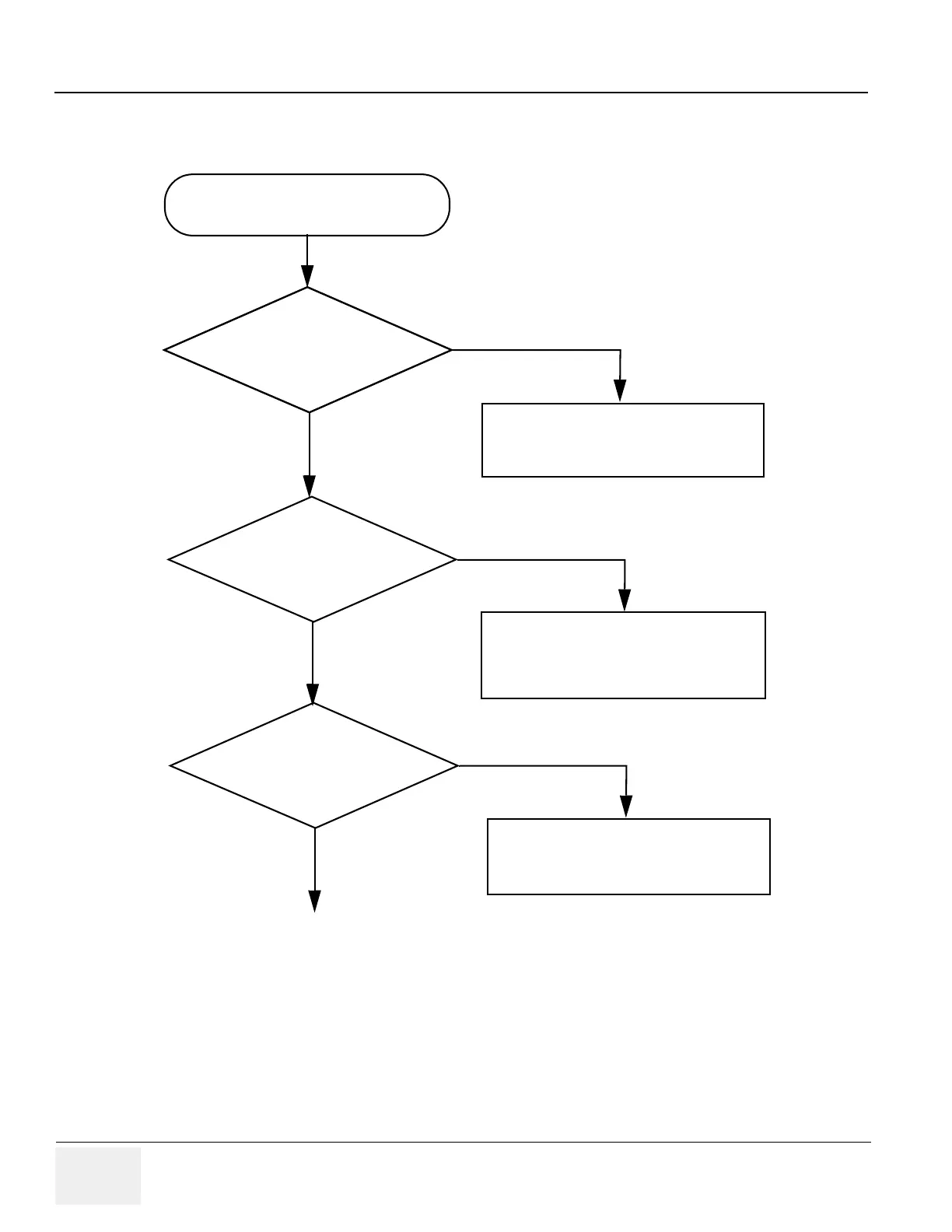

Figure 7-11 System does not Boot
System doesn’t boot!
Connect the AC power cable
between the Scanner and the wall
power outlet in right way.
YES
YES
NO
Turn ON the main breaker of
the Scanner.
Go on to the next page.
NO
Is the AC power cable
seated to the Scanner and
to the wall power outlet?
Is the main breaker turned
ON?
Press the ON/OFF button on the
Control Panel.
NO
Has the ON/OFF
key on the Control Panel
been pressed once?
YES

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
