GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 7-7 - Trouble Shooting Tree 7-25
7-7-2 System Does Not Boot (cont’d)

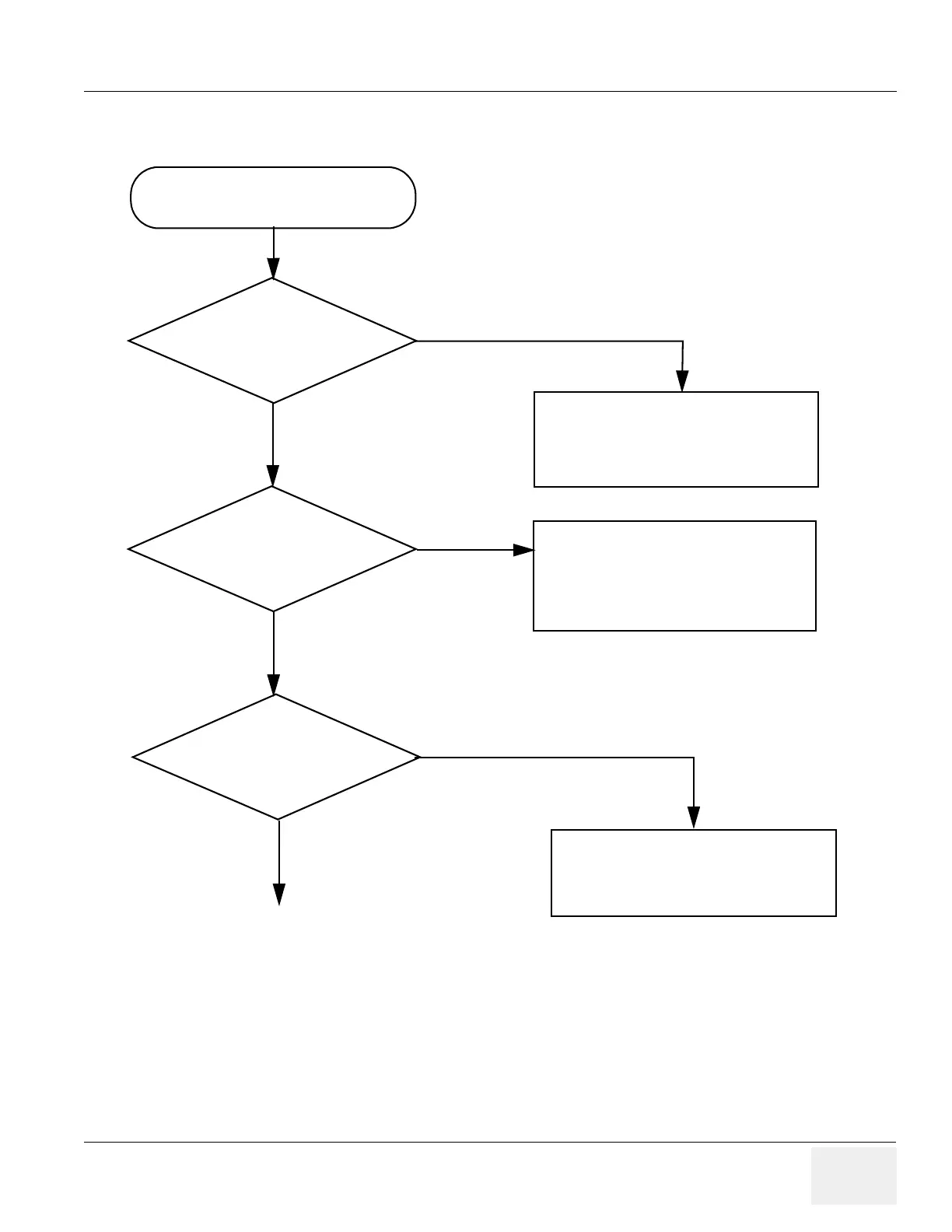

Figure 7-12 System does not Boot (contd.)
System doesn’t boot! (cont’d)
YES
Check;
1.) AC Power
2.) AC Transformer
Go on to the next page.
NO
Do the fans start to run?
Check/replace the PM SOM/CM
SOM module.
YES
NO
Is the SOM module starting
to display start-up screens
on the monitor?
Is the LOGIQ starting
display shown on the
monitor?
Turn off the power, wait a few
seconds, and try to turn on the
power again.
NO

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
