GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
5-30 Section 5-6 - ARP (Rear Panel)
Section 5-6
ARP (Rear Panel)
The LOGIQ™ P5 and LOGIQ™ A5 system has the I/O interfaces for peripherals in rear panel. ARP
(Arirang Rear Panel) assy has connectors for peripheral. Composite in/out and S-VHS in/out is for the
analog video interface for recording and playback of the VCR or DVD recorder. Audio in/out is for audio
interface for audio recording and audio playback of the VCR or DVD recorder. The ARP assy also has
a USB hub device for expending the USB ports which provide additional USB ports. The analog VGA
signal also provide display interface for external VGA monitor.

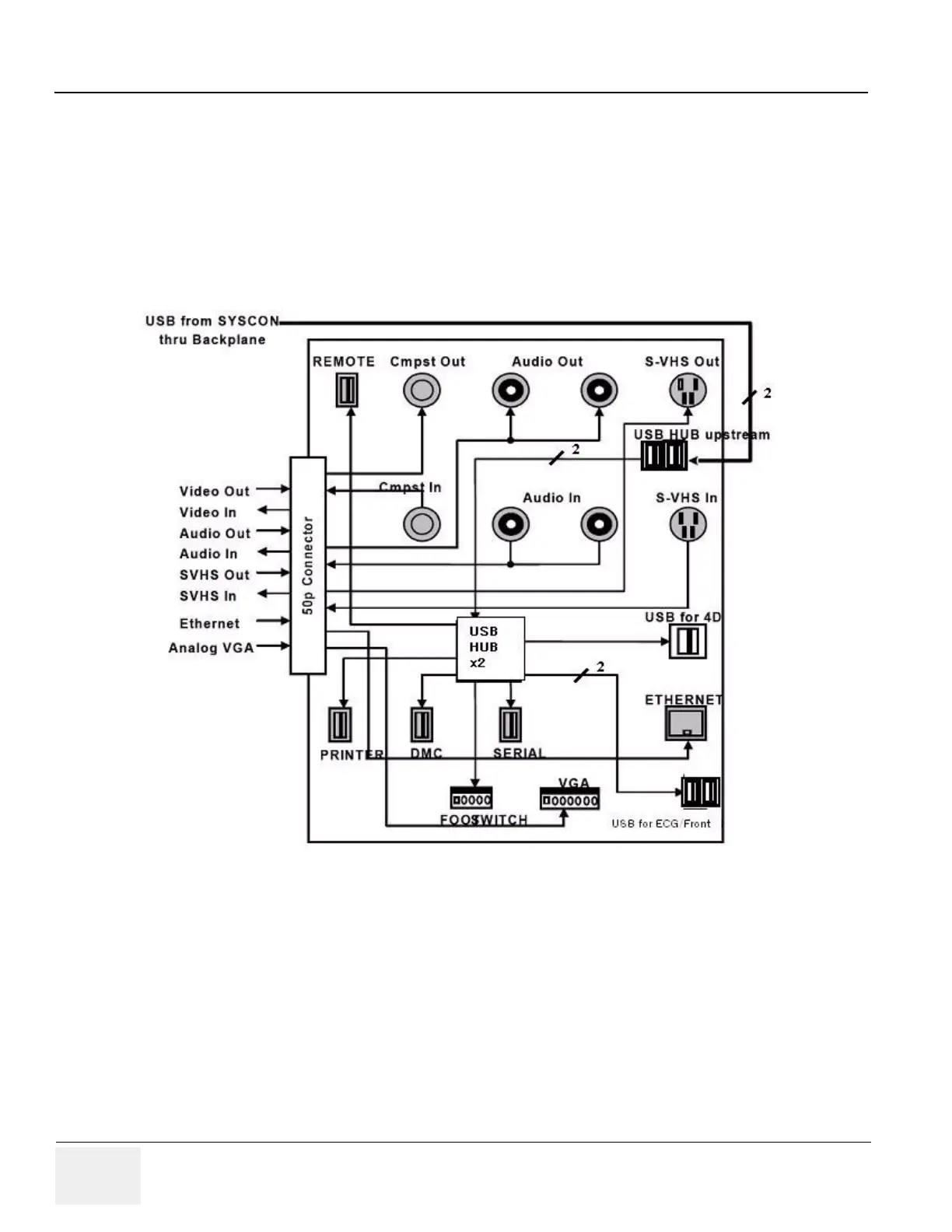

Figure 5-31 AEXP Block Diagram

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
