8-222 Section 8-7 - Mechanical Option Installation instruction
8-7-22 DVR Fixture Top Installation - SONY DVO-1000MD DVD Recorder
1.) This section describes the installation procedure of SONY DVO-1000MD DVD recorder.
2.) Unscrew 2 existing screw from the TOP COVER.
3.) Assemble the FIXTURE DVD BOTTOM BRKT on the TOP COVER by screwing 2 screws
(2327592, FH M4X14).

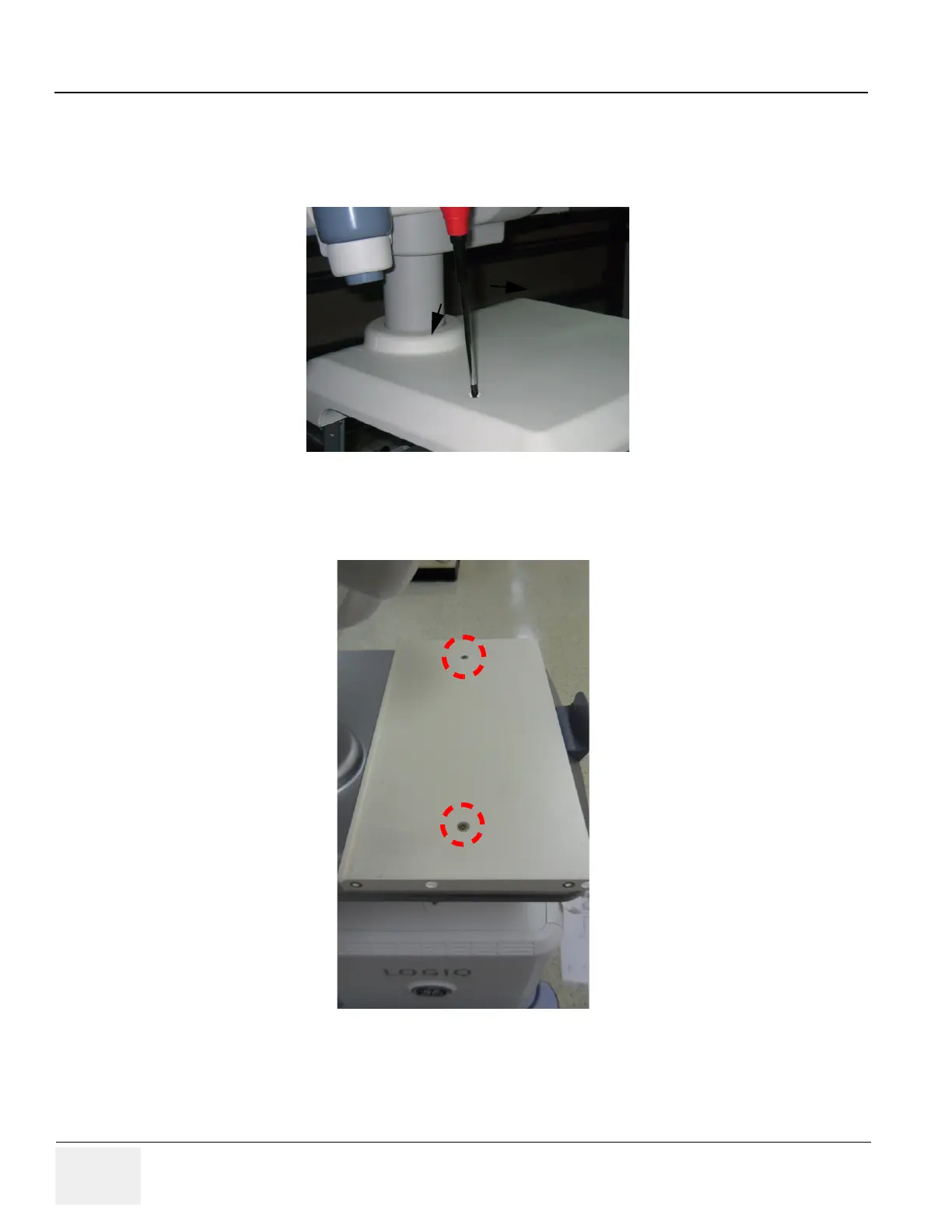

Figure 8-341 SONY DVR Fixture Top Installation
Figure 8-342 SONY DVR Fixture Top Installation
