GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-223
8-7-22 DVR Fixture Top Installation - SONY DVO-1000MD DVD Recorder (cont’d)
4.) Assemble the SONY DVO-1000MD to TOP FIXTURE BRKT by screwing 4 screws (2306562, FH
M3X6).
5.) Assemble the DVO-1000MD with TOP FIXTURE BRKT to FIXTURE DVD BOTTOM BRKT by
screwing 4 screws (2159333, BH M4X8).

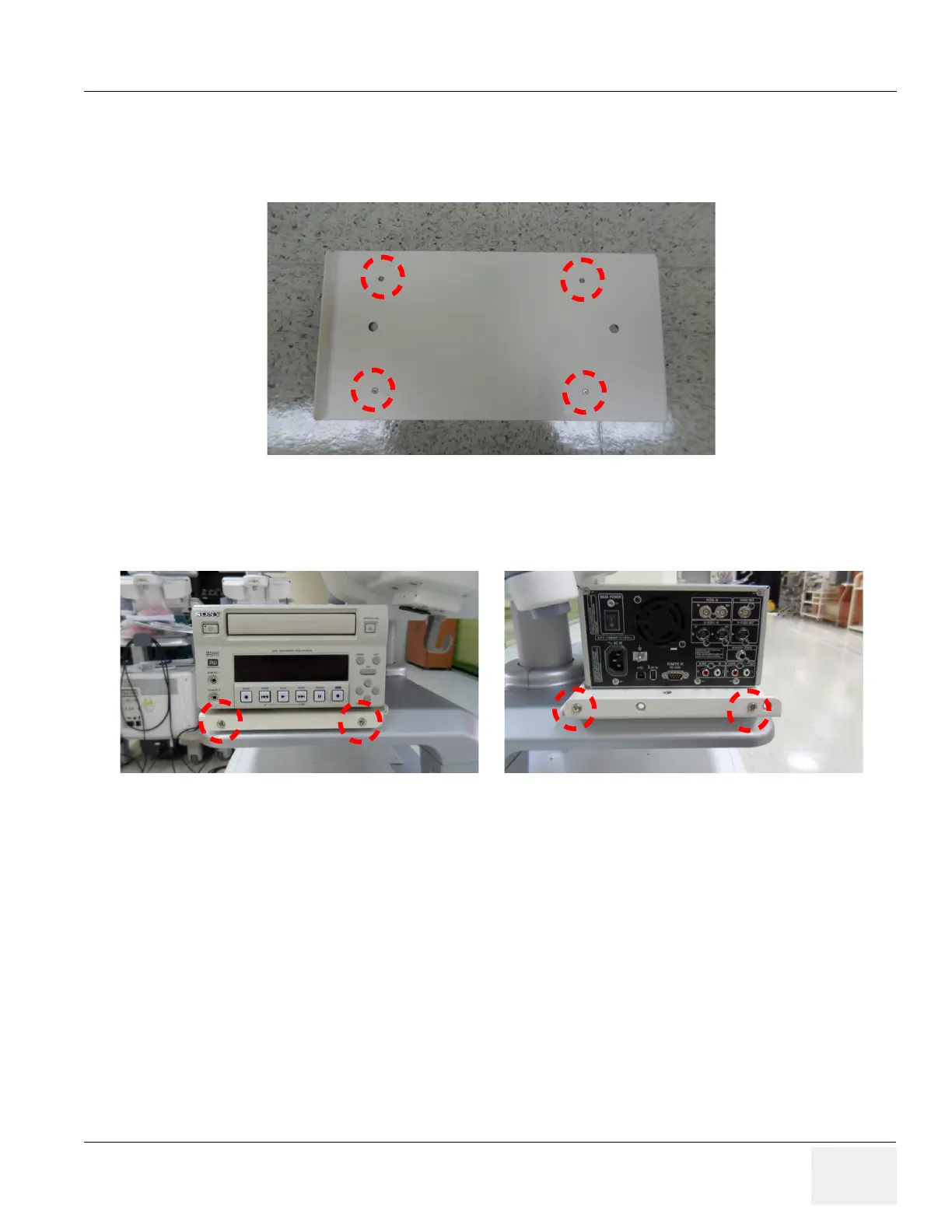

Figure 8-343 SONY DVR Fixture Top Installation
Figure 8-344 SONY DVR Fixture Top Installation
