DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-224 Section 8-7 - Mechanical Option Installation instruction
8-7-22 DVR Fixture Top Installation - SONY DVO-1000MD DVD Recorder (cont’d)

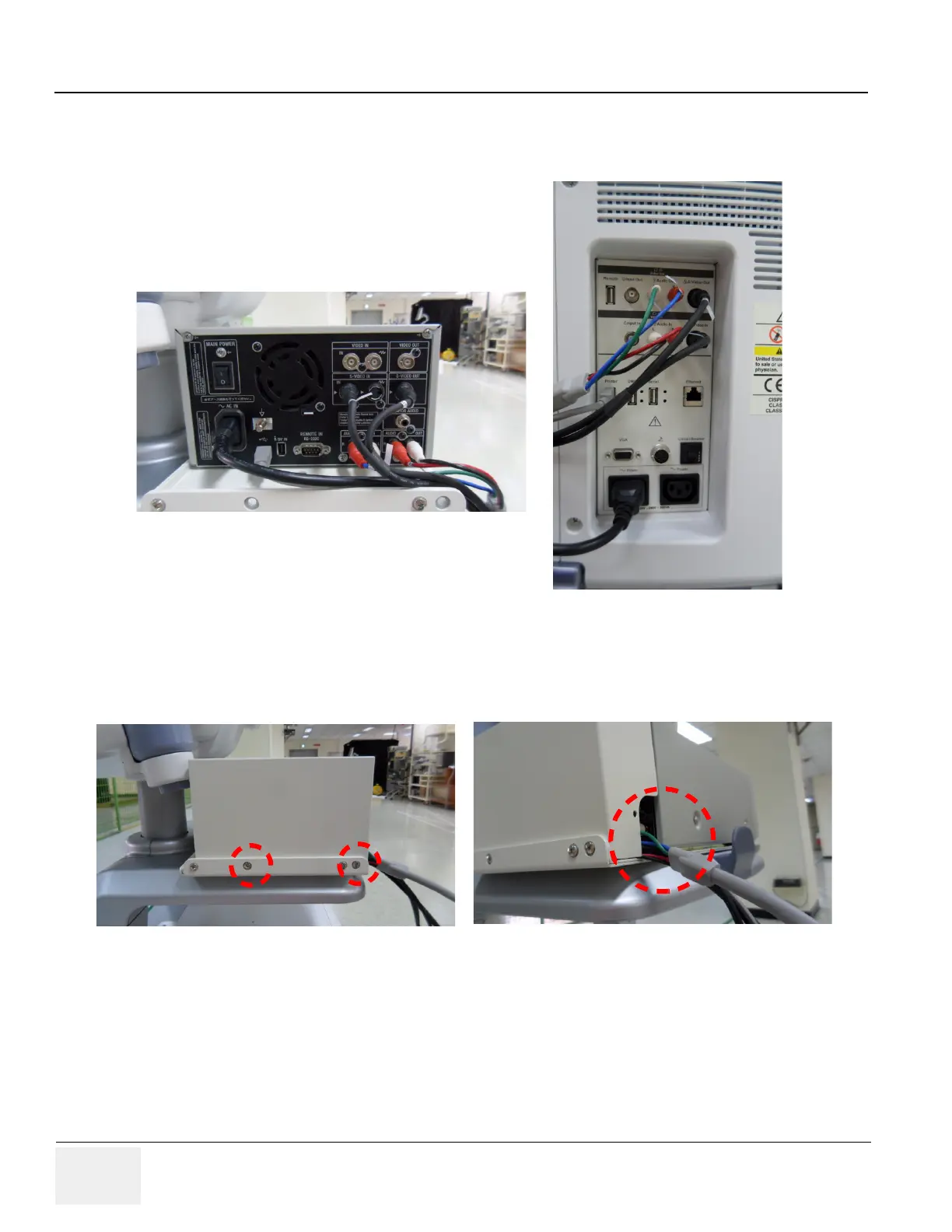

6.) Connect the cable connector with the reference to the picture below.
7.) Assemble the TOP CABLE BRKT behind the SONY DVR to cover the Cables by screwing 2 screws
(2153633, BH M4X8) and tie the cable using the CABLE TIE with the hole in the red rectangle
shown in the right picture of Figure 8-346 below.
Figure 8-345 SONY DVR Fixture Top Installation
Figure 8-346 SONY DVR Fixture Top Installation

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
