8-54 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-17 Front Cover
8-2-17-1 Tools
• Common pilIips screwdrivers
8-2-17-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-17-3 Removal procedure
1.) Remove the Left, and Right side covers. Refer to the 8-2-15 "Side Left Cover" on page 8-51 and 8-
2-16 "Side Right Cover" on page 8-52.
2.) Remove the dummy left and right covers. Refer to the Figure 8-88.
3.) Unscrew 2 screws (1-2) from the left side of the front cover.
4.) Unscrew 2 screws (1-2) from the right side of the Front cover.

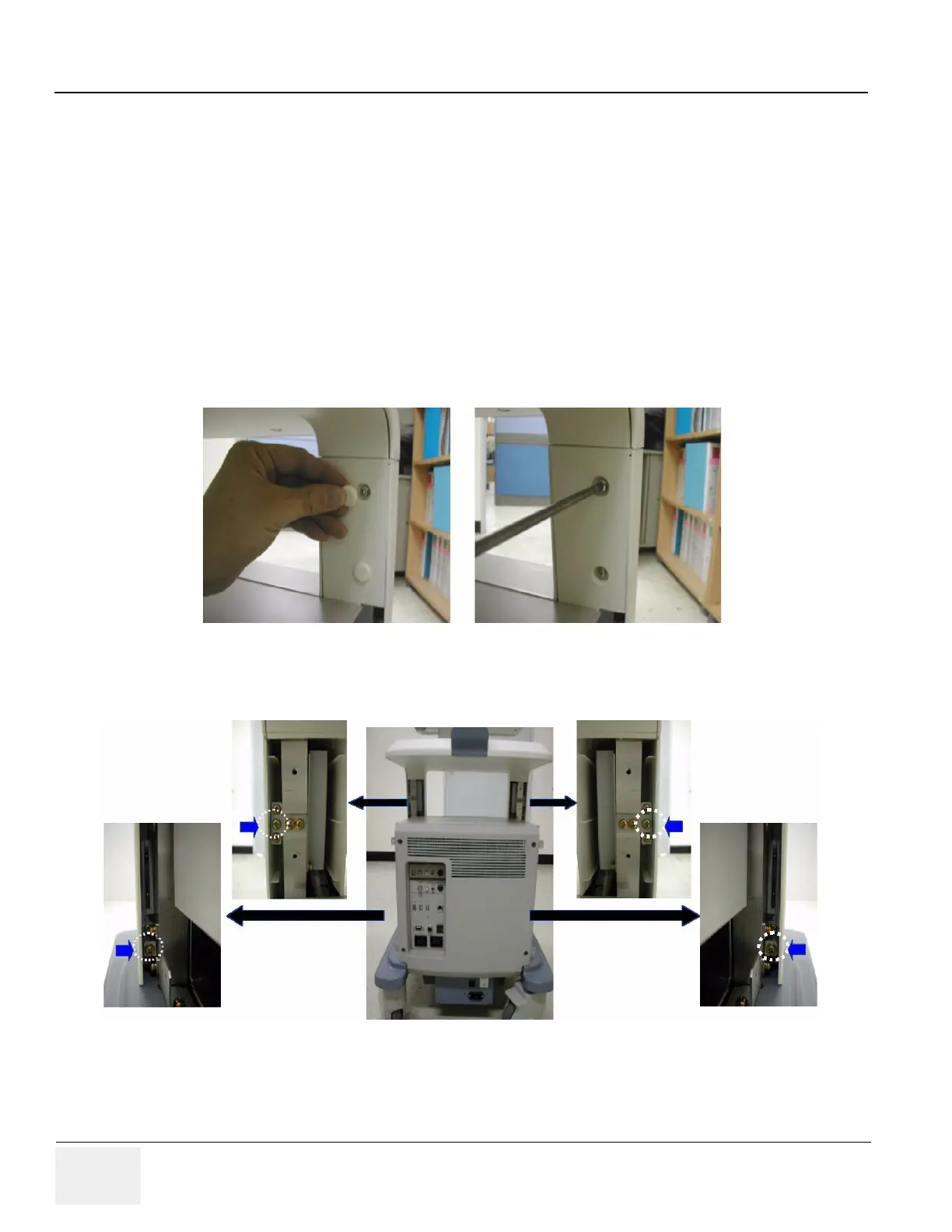

Figure 8-88 Screws of Dummy Cover
Figure 8-89 Screws of the front cover
