GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-214 Section 8-7 - Mechanical Option Installation instruction
8-7-16 Additional Task Lamp installation (cont’d)
4.) Install task lamp bracket to the rear side of keyboard by screwing 2 screws(5178673, FH M4x6
WHT).
5.) Fix the task lamp light as shown on the figure below.
6.) Install BW hide bracket if it is uninstalled during the installation process.

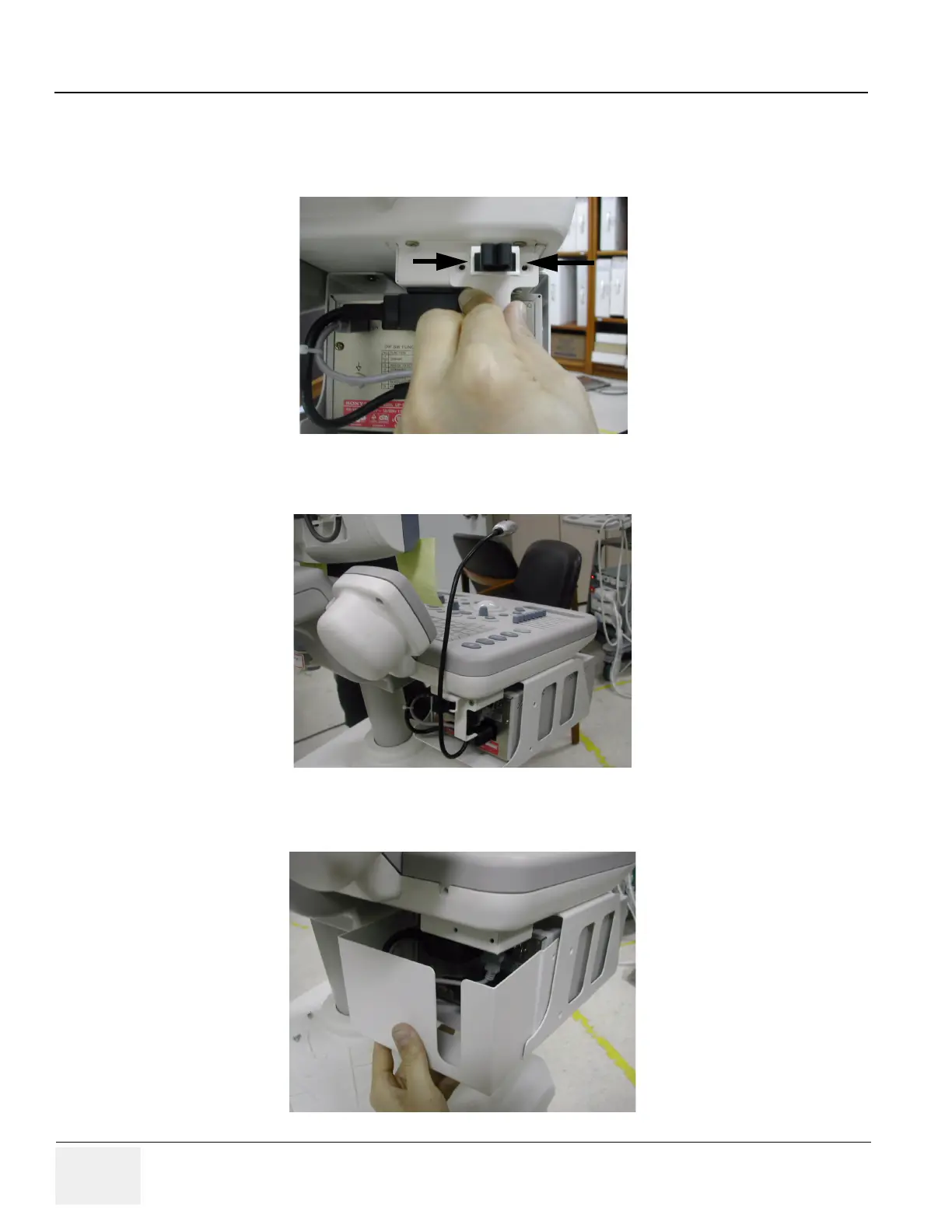

Figure 8-325 Additional Task Lamp Installation
Figure 8-326 Additional Task Lamp Installation
Figure 8-327 Additional Task Lamp Installation
