GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-213

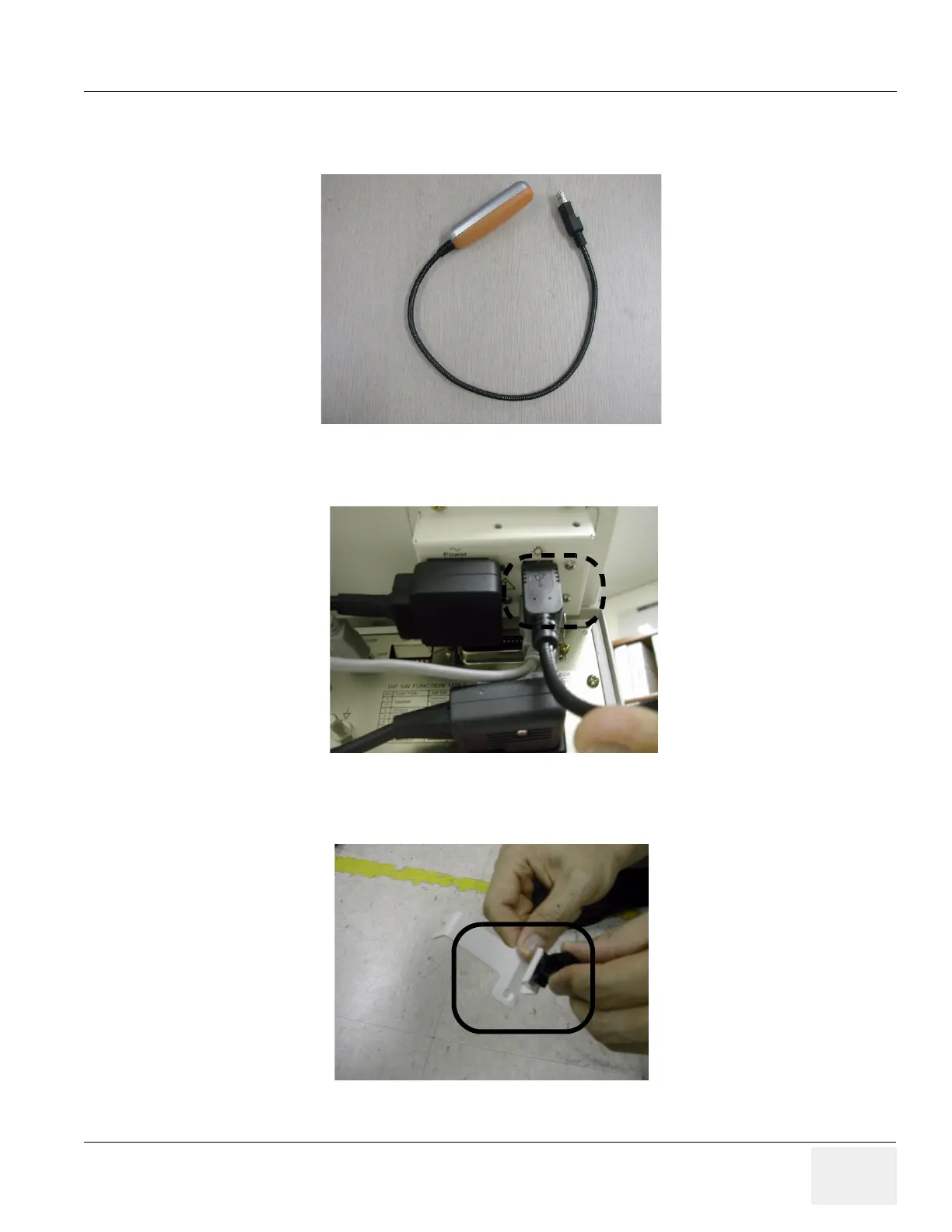

8-7-16 Additional Task Lamp installation
1.) This is the installation instruction of additional task lamp.
2.) Connect the USB connector to the location of light bulb mark.
3.) Install plastic holder to the task lamp bracket.
Figure 8-322 Additional Task Lamp Installation
Figure 8-323 Additional Task Lamp Installation
Figure 8-324 Additional Task Lamp Installation

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
