GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 4-3 - General Procedure 4-5
4-3-3 System Features
4-3-3-1 Control Panel for LOGIQ™ A5
1.) Power on/off switch
2.) Alpha Numeric key
3.) Patient Key
4.) TGC
5.) Track Ball
6.) Function Select key
7.) Freeze Key
8.) Gain Knob
9.) User Define Key

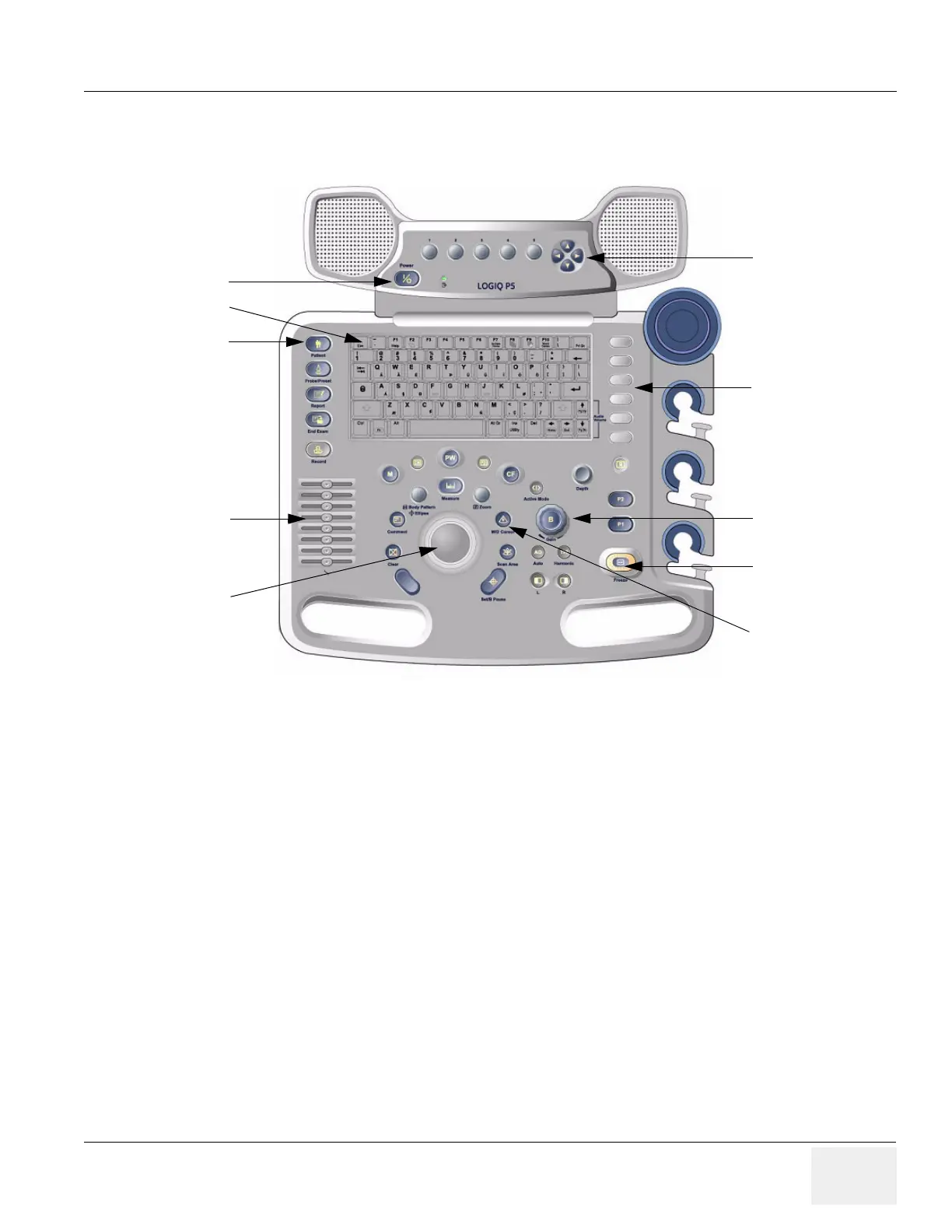

Figure 4-4 Control Panel Tour LOGIQ™ A5
1
2
3
4
5
6
7
8
9
10

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
