8-2-7 Main Keyboard Assy
8-2-7-1 Tools
• Common pilIips screwdrivers
8-2-7-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-7-3 Removal procedure
1.) Remove the 3 Probe holders & Cup holder from the keyboard.
2.) Unscrew 4 screws from the bottom front of the keyboard.

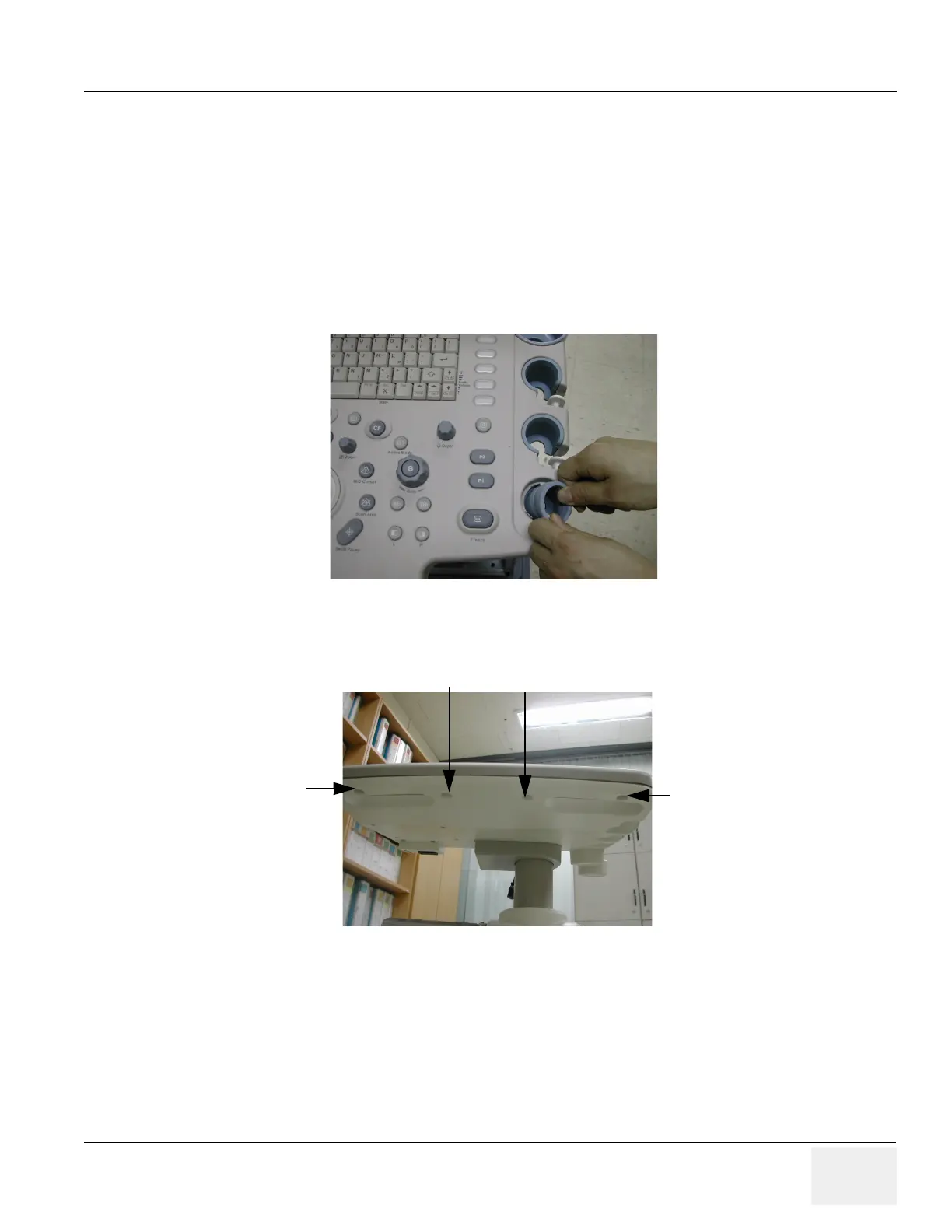

Figure 8-66 Removing holders
Figure 8-67 Unscrews 4 screws
(1)
(4)
(2) (3)
