GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
7-26 Section 7-7 - Trouble Shooting Tree
7-7-2 System Does Not Boot (cont’d)

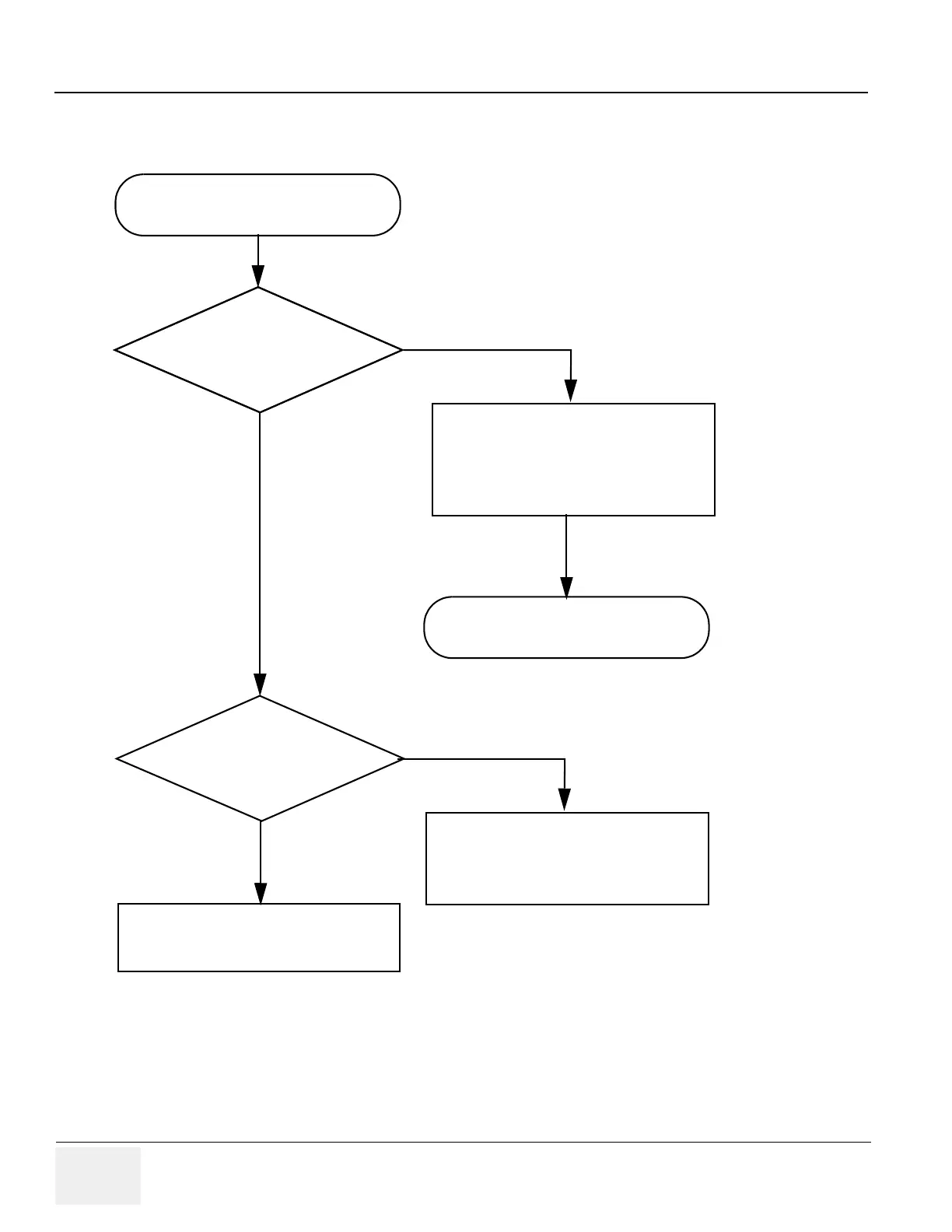

Figure 7-13 System does not Boot (contd.)
System doesn’t boot! (cont’d)
1.) Check the Control
Panel cable
connection.
2.) Check/replace
Control Panel.
YES
YES
NO
Are the Control Panel
keys lit?
Is regular scan display
shown on the monitor?
Press and hold the main switch for
five (5) seconds to reboot the
system.
NO
Go to Scan Procedure section.
END
