8-6 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-2-2 Removal procedure (cont’d)
3.) Disconnect power cable and DVI cable.
4.) Unscrew 2 screws(5177684, HSH M5x20 WHT) to separate LCD monitor.
5.) Unscrew 4 screws to remove the LCD rear cover.

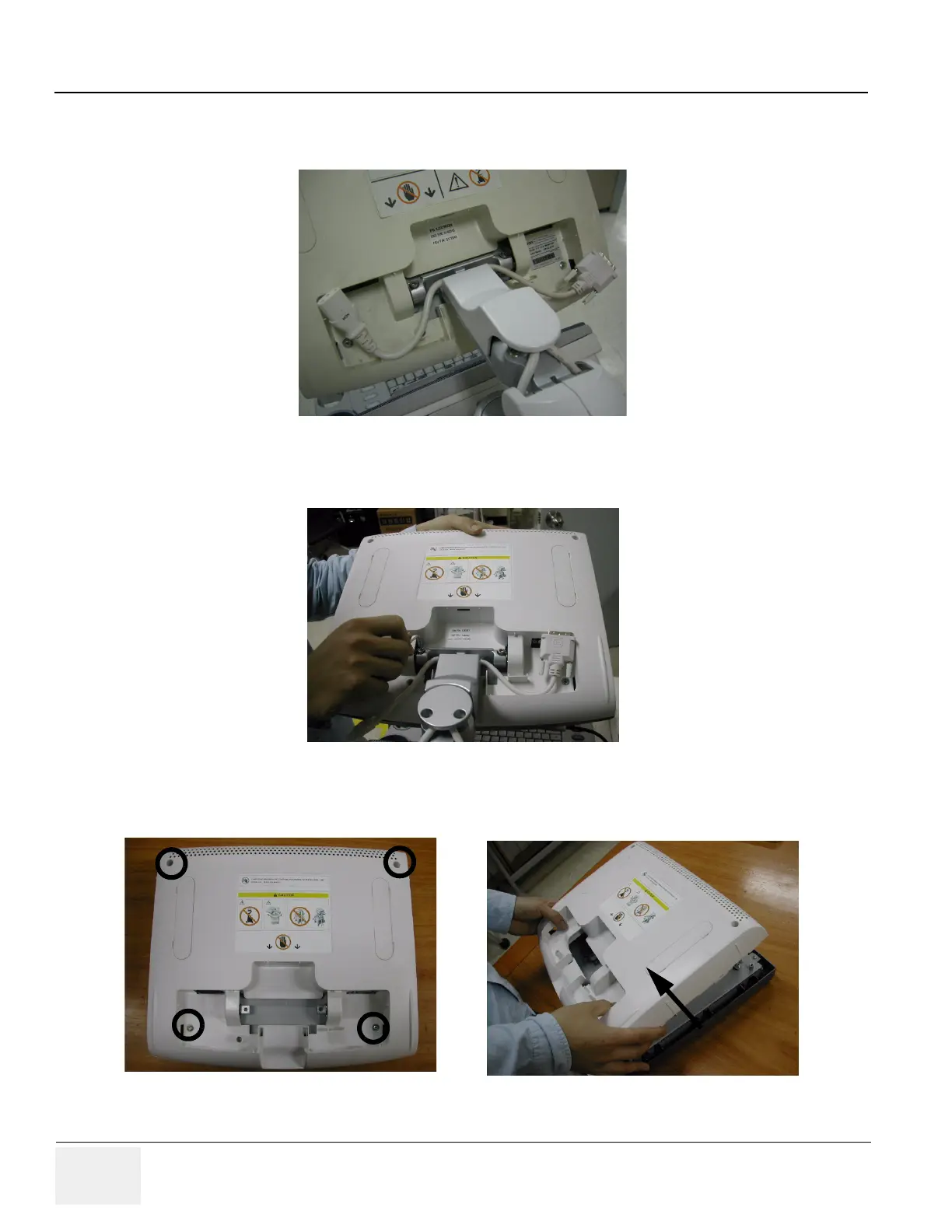

Figure 8-6 Disconnecting power cable and DVI cable
Figure 8-7 Separating the LCD monitor
Figure 8-8 Removing the LCD rear cover
