DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-201
8-7-12 Printer VCR DVD fixture Top installation - CP900 Printer (cont’d)
7.) Install hide bracket by screwing 3 screws(2159633, BH M4x8 WHT).
8.) Tie the cable properly using the tie wrap.

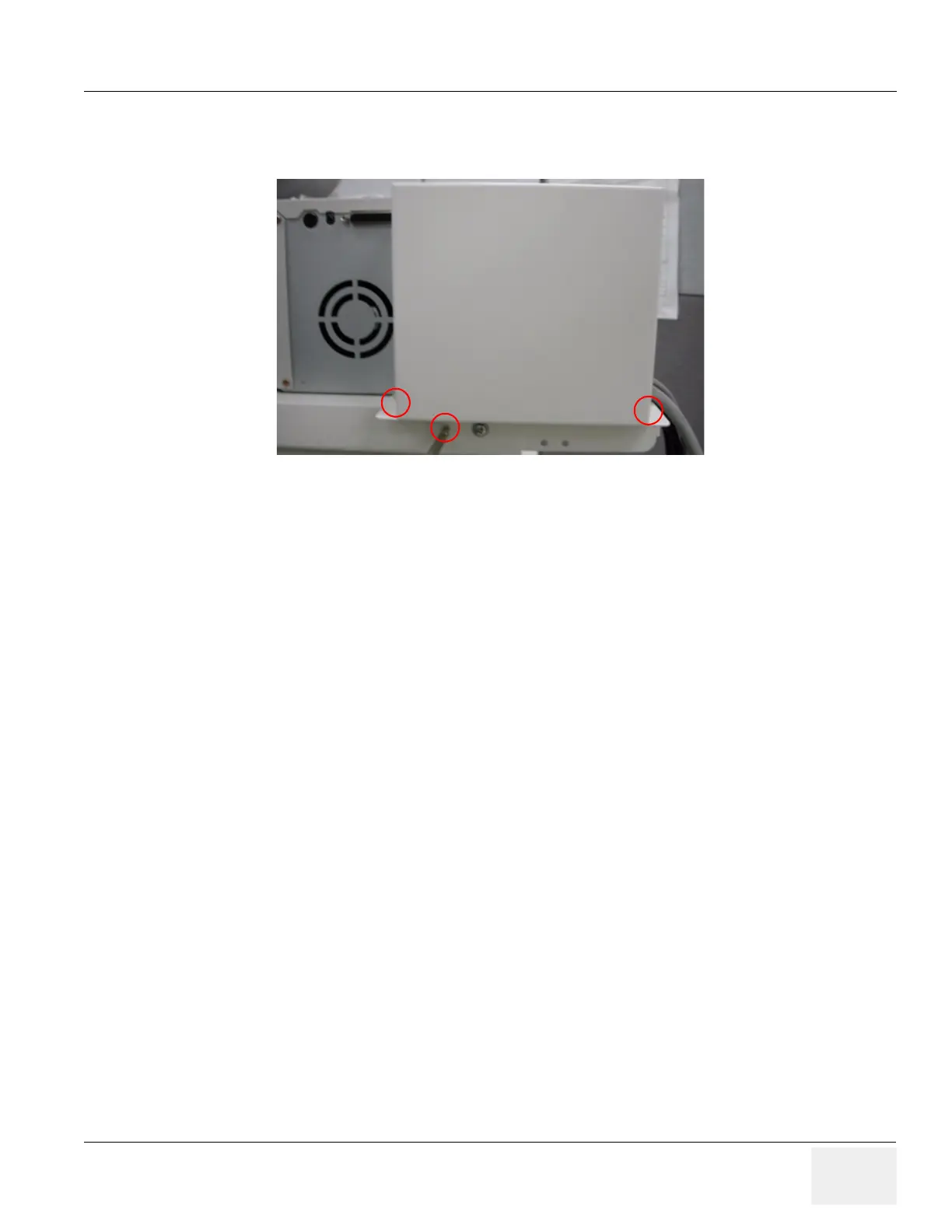

Figure 8-297 Printer VCR DVD Fixture Top installation
