Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-41
8-2-8-4 Mounting Procedure
1.) The product emblem is attached on the sub keyboard, so proper elblem should be attached on the
sub keyboard when replace the sub keyboard.
The sub keyboard FRU include 4 kinds of emblem which are LOGIQ P5, LOGIQ P5 Ob, LOGIQ A5,
LOGIQ A5 pro.
2.) Attache proper product emblem as same as install base system before assemble the sub keyboard
assy.
3.) Refer Install the new parts in the reverse order of removal.

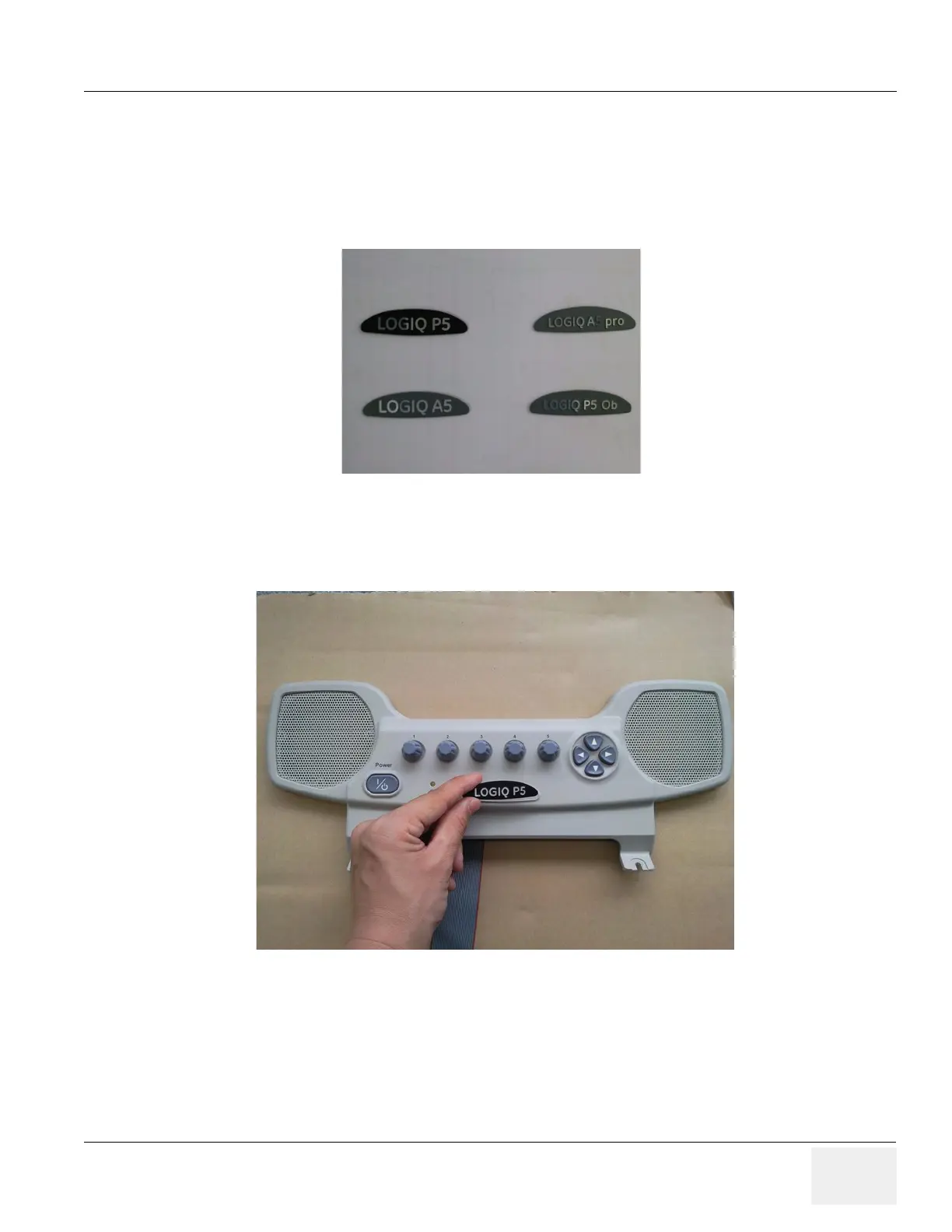

Figure 8-71 Emblems
Figure 8-72 Emblem on Sub Keyboard

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
