4-44 Section 4-9 - Board Function Checks
ACWD Diagnostics Menu,” on page 18.Reboot up the system.
16.)Reboot up the system.
17.)Insert Probe in Probe port (Sector or Pencil Probe).
18.)After system boot up, enter the CWD mode.
19.)Check the display Image. Refer to Section 10-5 "System Maintenance" on page 10-7 and 4-3-5
"System CFM and PWD Checks" on page 4-9.

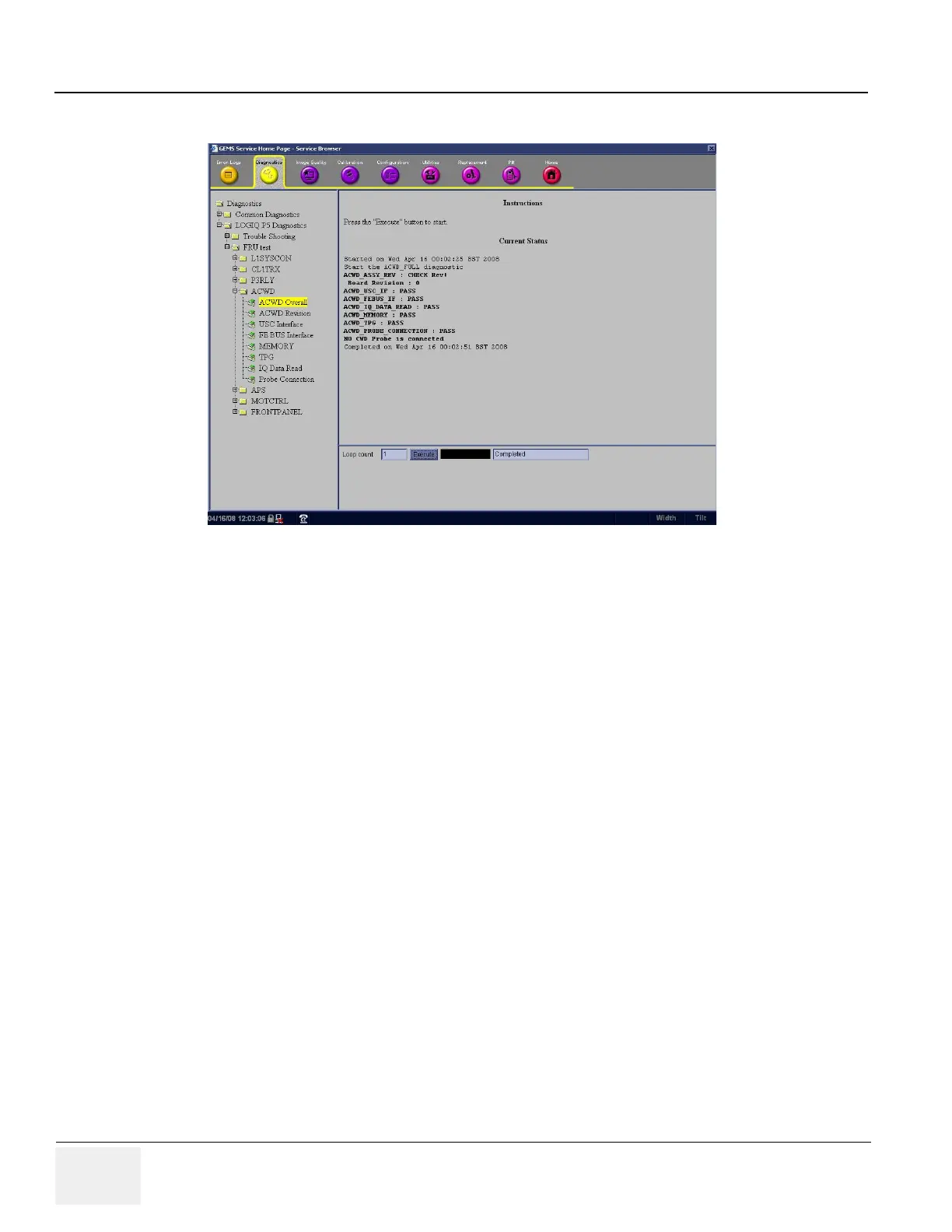

Figure 4-43 ACWD Diagnostic Test

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
