DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
5-28 Section 5-5 - Top Console
5-5-2 LOGIQ™ P5 Monitor II and LOGIQ™ A5 Monitor II
LOGIQ™ P5 and LOGIQ™ A5 system has 15 inch LCD monitor with DVI-I interface. Monitor have also
task lamp to light up the A/N key on keyboard assy.
Both monitor of LOGIQ™ P5 and LOGIQ™ A5 have completely same function and same hardware
assembly. Difference is front bezel color. LOGIQ™ P5 bezel color is dar steel blue, and LOGIQ™ A5
bezel color is white gray color.
5-5-2-1 MONITOR Signal I/O
Monitor assy has two main I/O connectors, One is for DVI-I connection to scan system to display the
scan image, the other is for 110V/220V power supply.

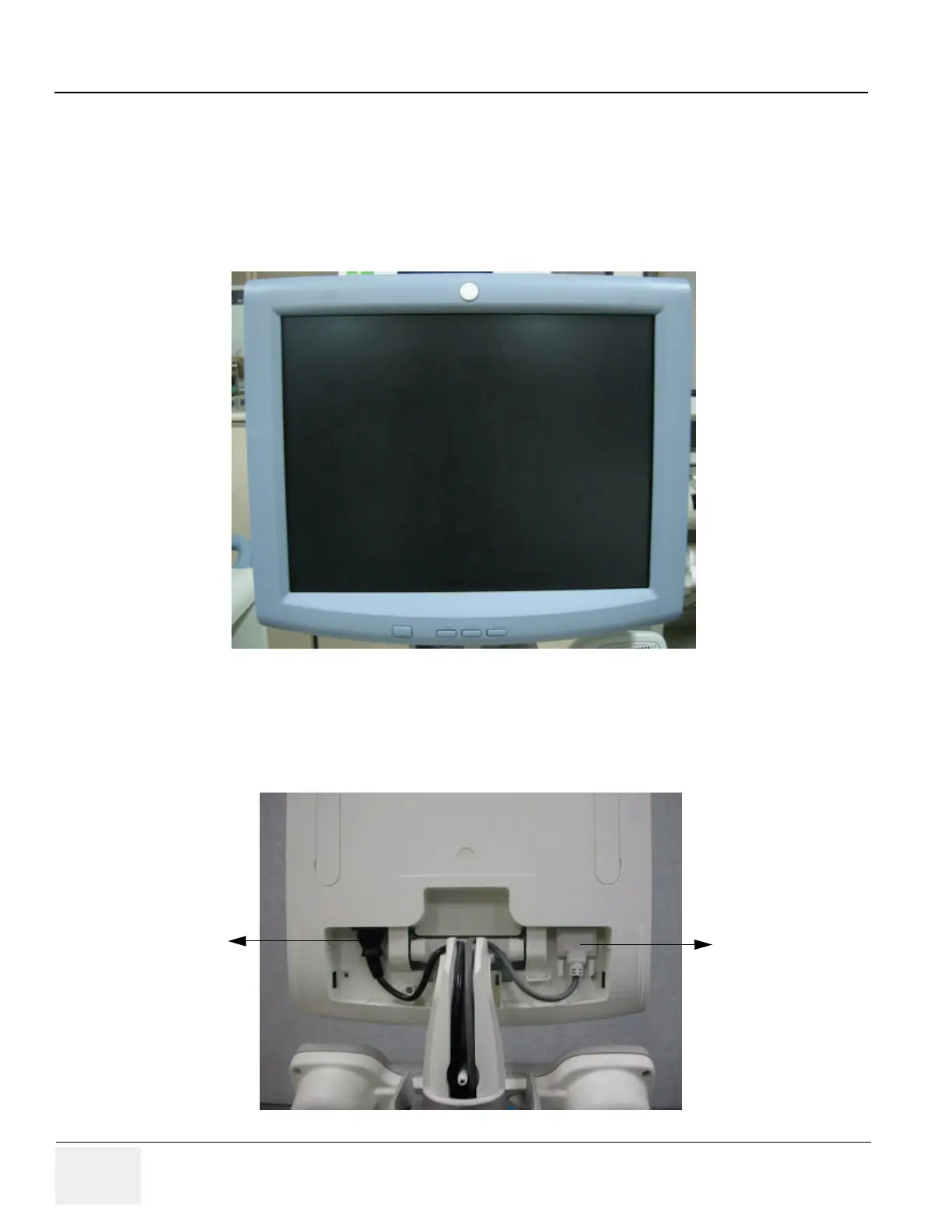

Figure 5-27 LOGIQ™ P5 Monitor and LOGIQ™ A5 Monitor
Figure 5-28 LCDMON connection in system
DVI
PWR

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
