8-28 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-4 Assembly procedure (cont’d)
12.)Screw 2 screws (2159626, PH M4X20) to assemble the Arm stopper.
13.)Screw 2 screws (2159625, PH M4X8 W/SP) to assemble the Lower arm guide bracket.
14.)Tie the Cables with Cable tie.

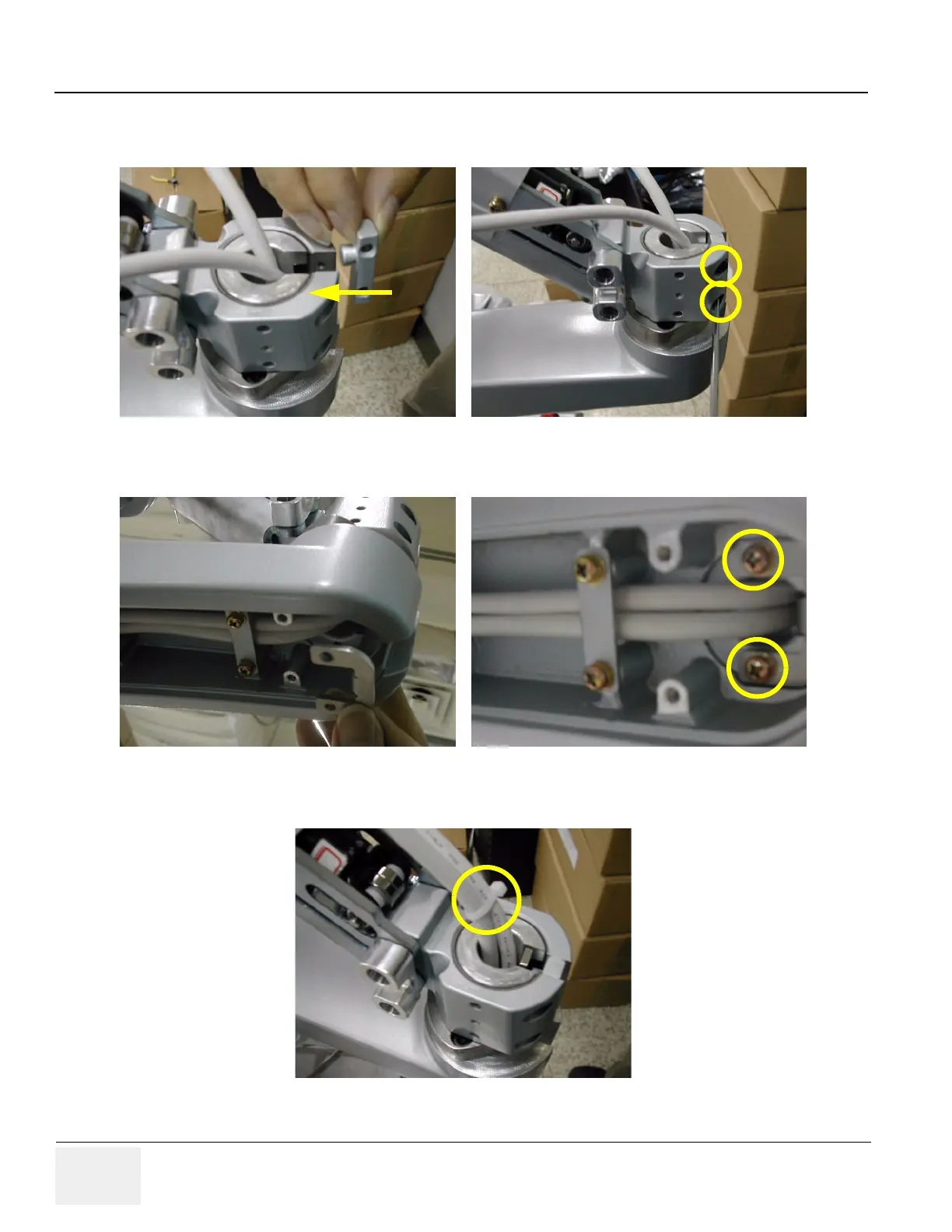

Figure 8-49 Installing the Arm stopper
Figure 8-50 Assembling the Lower arm guide bracket
Figure 8-51 Tying the cables
