8-30 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-4 Assembly procedure (cont’d)
18.)Place the cables like the figure below.
19.)Screw 1 screw (2306565, BH M4X16 WHT) to fix the Power cable.

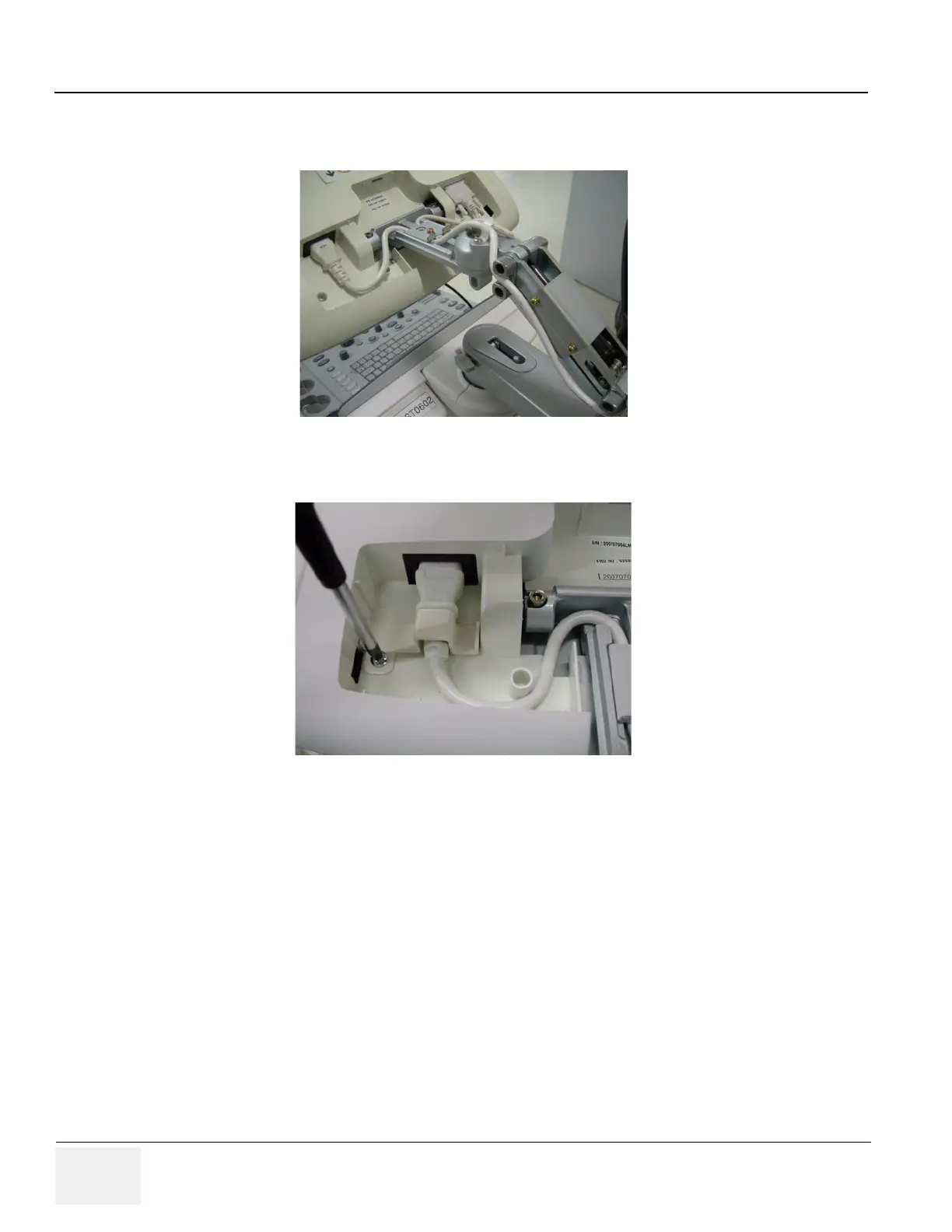

Figure 8-55 Placing the cables
Figure 8-56 Assembling the power cord bracket
