GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-4 - Software Installation 8-157
8-4-4-6 Verifying the VCR (if necessary)
1.) Press Record button, VCR menu shows up at the bottom of the screen.
2.) Click Counter Reset, then Press Record menu to start recording.
Displays a red dot in the VCR status area on the Title bar to indicate that recording has begun.
3.) Press Stop to stop recording the tape at the desired moment.
4.) Press Search to adjust the starting time for video playback.
5.) Press Play to start VCR playback.

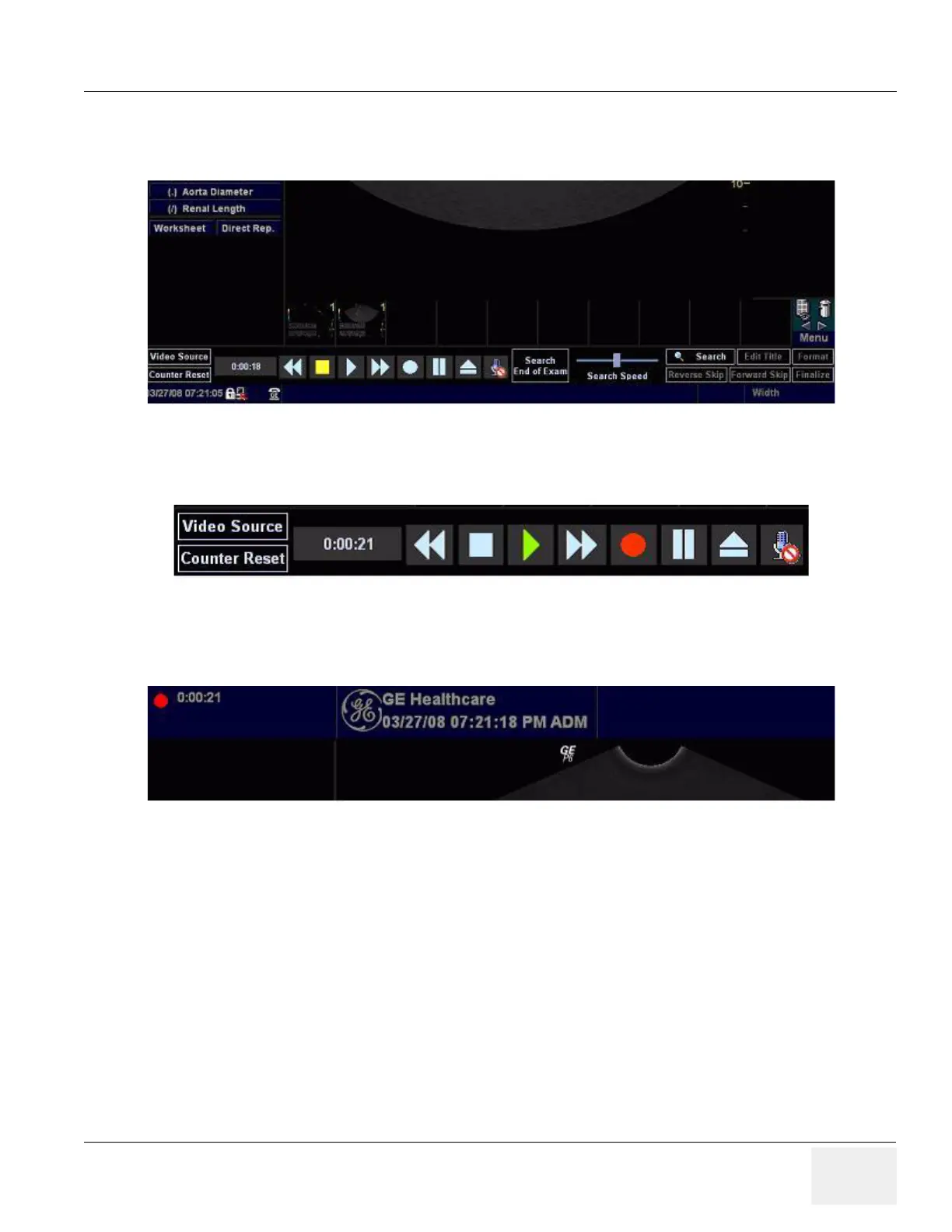

Figure 8-214 VCR Menu
Figure 8-215 Record Menu
Figure 8-216 VCR Status

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
