DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-5 - Full Backup/Restore Procedure 8-165
8-5-3 Full Backup Procedure (cont’d)
12.)If USB HDD with enough space is not already plugged in, plug in one.Then press Next
13.)Press next to continue. Then the below windows appear.
14.)Verify that “Backup was completed!” message is displayed.
15.)Press Finish to complete.

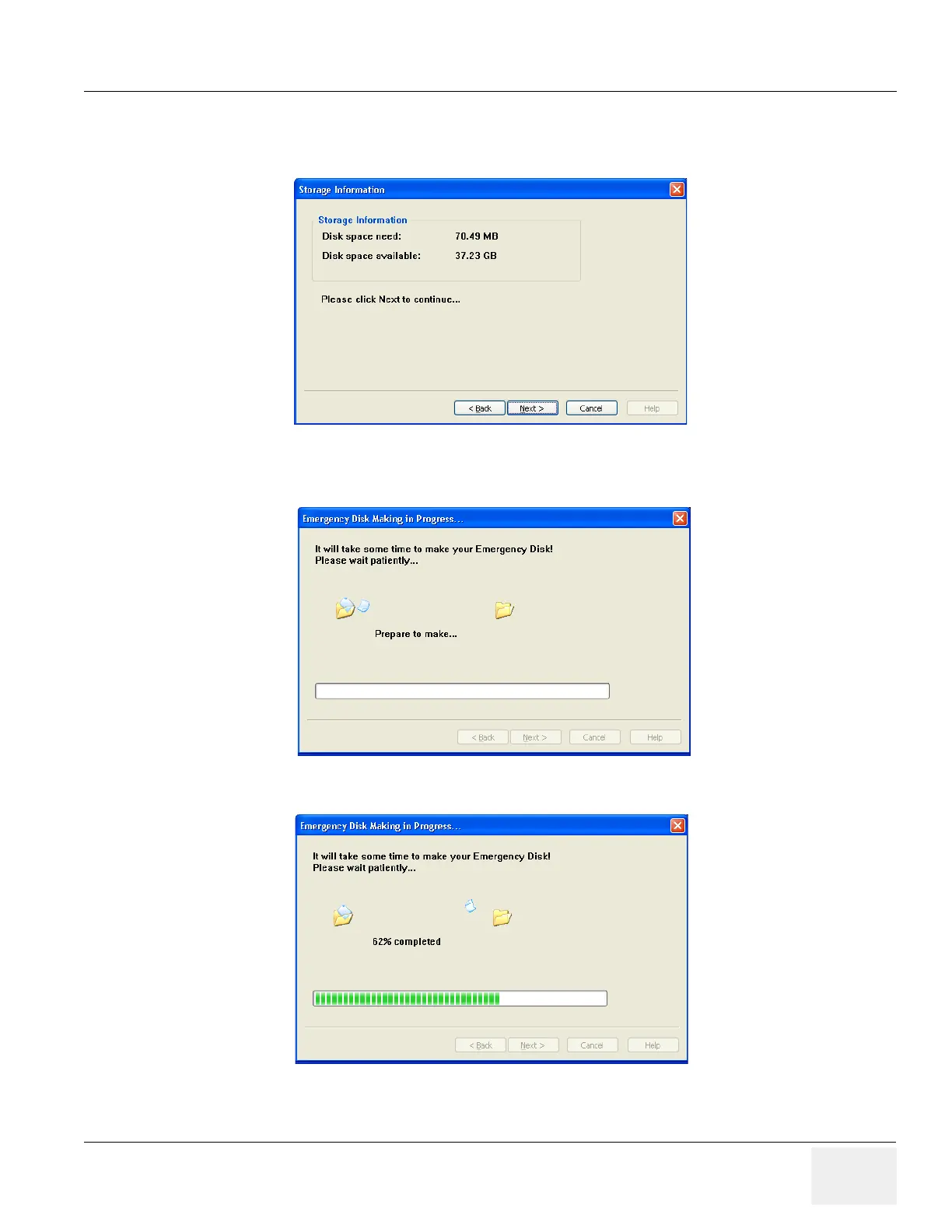

Figure 8-228 Storage Information
Figure 8-229 Emergency Disk Making Preparation
Figure 8-230 Emergency Disk Making in Progress

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
