DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-185
8-7-6 BW Printer Fixture Keyboard installation
1.) Put loctite 290 on the screw(2159634, BH M4X10 WHT) edge.
2.) Fix the BW printer cover beneath the keyboard by the screw(2159634, BH M4X10 WHT).
3.) Fix the BW printer base bracket to the BW Printer by screwing 4 screws(2306562, FH M3x6 YEL)
(1-4).

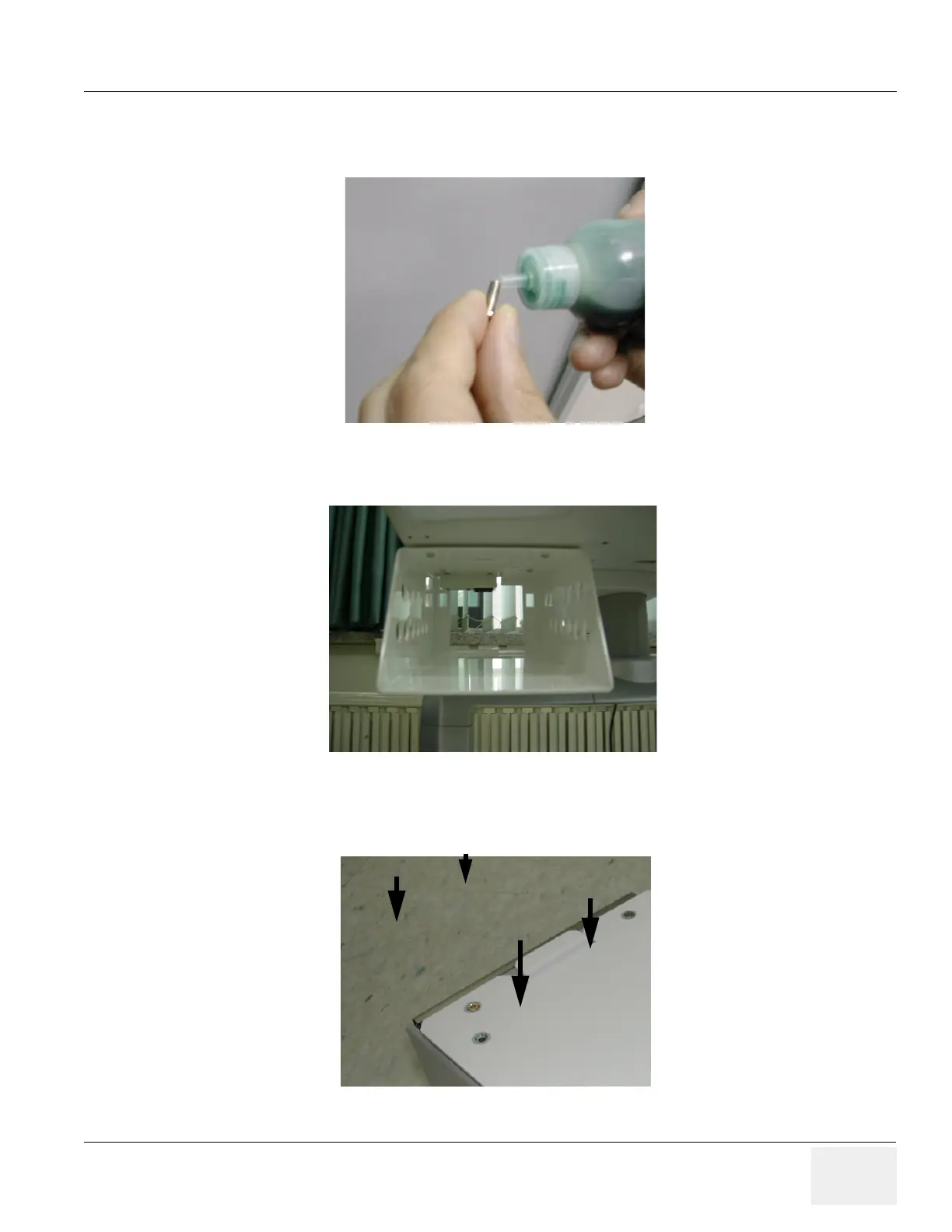

Figure 8-258 BW Printer Fixture Keyboard installation
Figure 8-259 BW Printer Cover Keyboard installation
Figure 8-260 BW Printer Fixture Keyboard installation
base bracket
(1)
(2)
(3)
(4)
