GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-197
8-7-11 Color Printer Fixture Top Installation - UP-D25MD Printer (cont’d)
4.) Install Top Cable BRKT_UPD25MD by screwing 2 screws(2159633, BH M4X8).
5.) Install Color Printer to the DVD top Bracket by screwing 4 screws (2306562, FH M3X6).
6.) Screw 4 screws(2159633, BH M4X8) on both sides to fix the color printer with TOP Bracket to the
color printer bottom bracket.

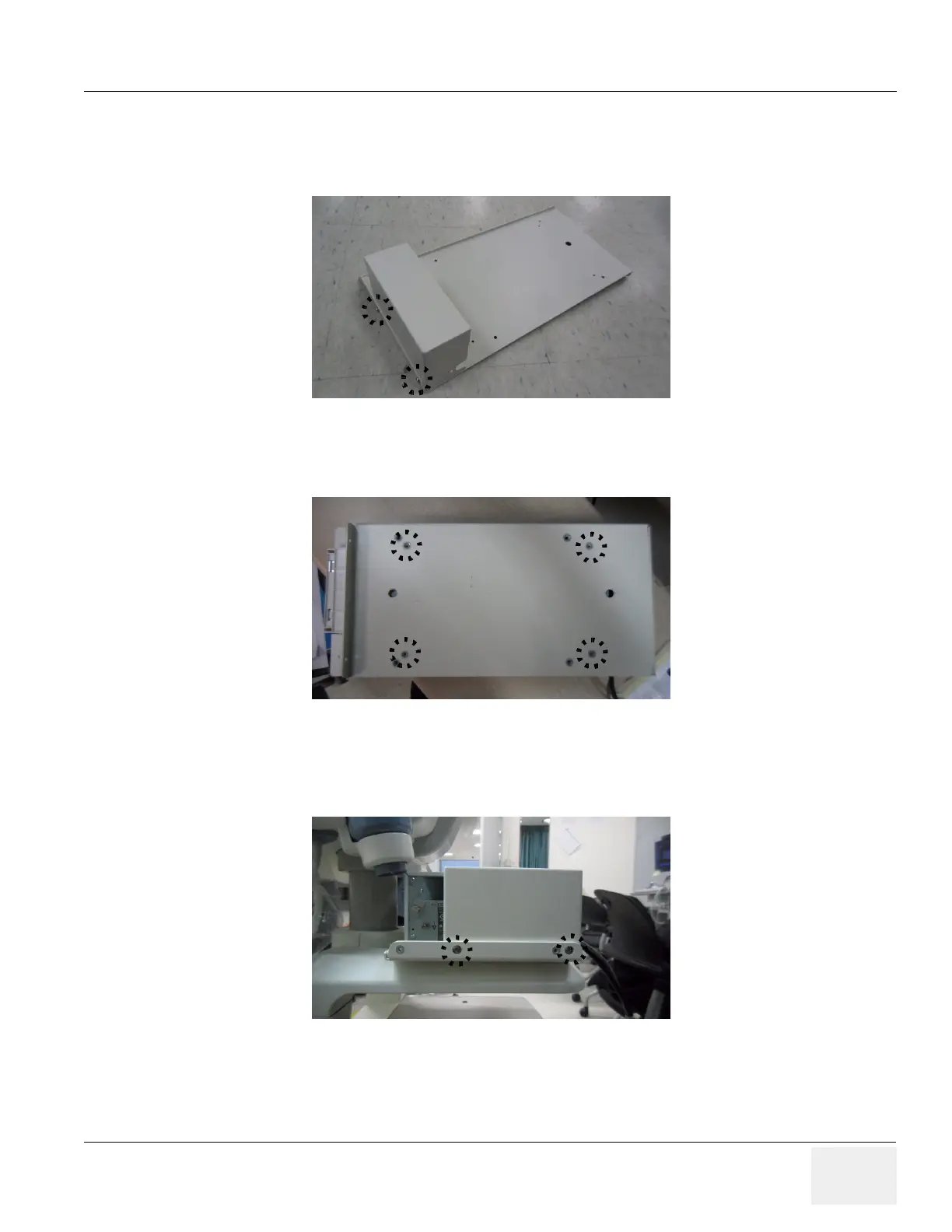

Figure 8-287 Color Printer Fixture Top Installation
Figure 8-288 Color Printer Fixture Top Installation
Figure 8-289 Color Printer Fixture Top Installation
To Next Page
