GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-209
8-7-14 Printer VCR DVD Fixture Top Installation (MD-800) (cont’d)
4.) Install DVD recorder to the base bracket by screwing 2 screws(2159633, BH M4x8 WHT) on each
side.
5.) Connect the USB cable and power cable from the DVD to the system.
6.) Connect the cables to the system on the rear panel.

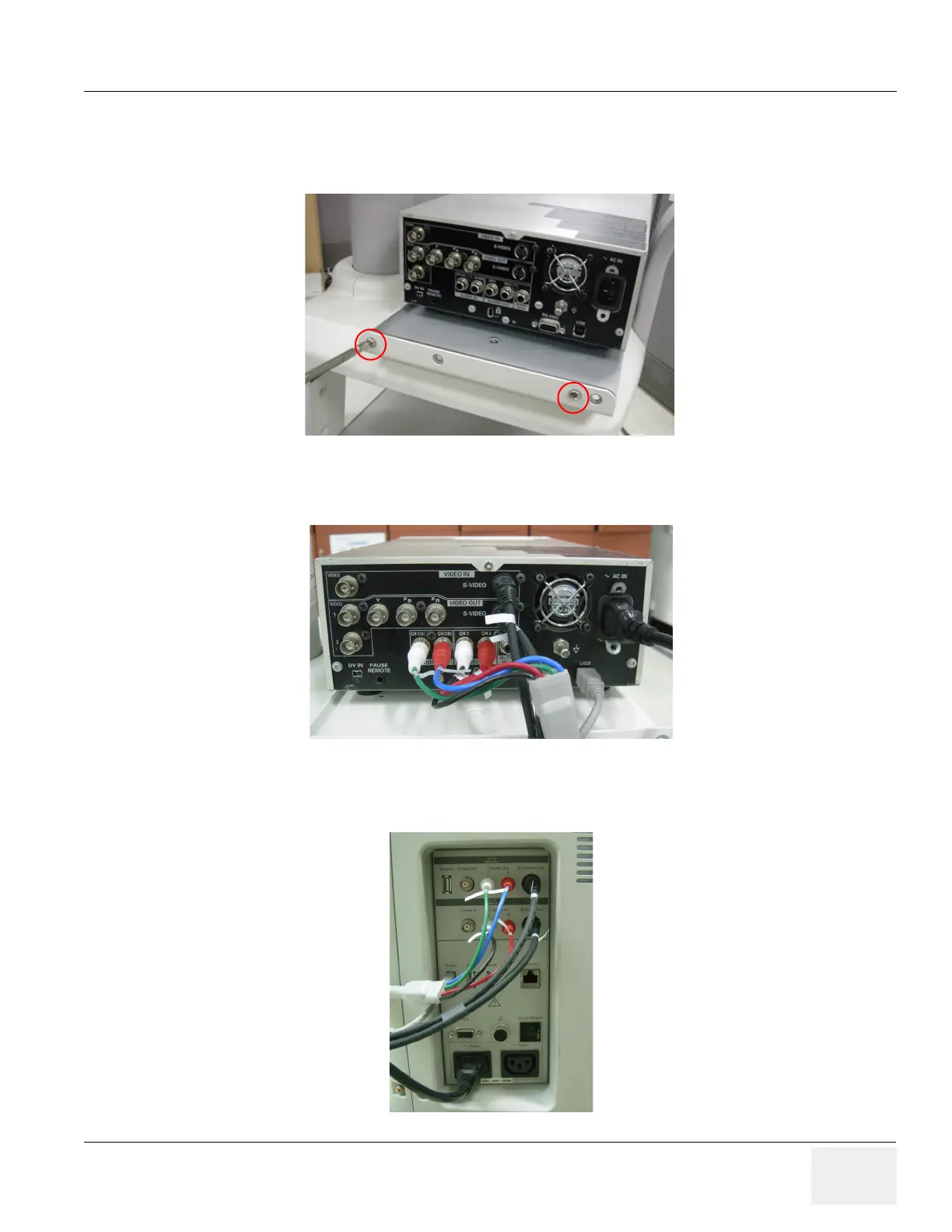

Figure 8-314 Printer VCR DVD Fixture Top installation (LQ MD800)
Figure 8-315 Printer VCR DVD Fixture Top installation (LQ MD800)
Figure 8-316 Printer VCR DVD Fixture Top installation (LQ MD800)

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
