8-7-20 BT11 Drawer Option Installation (cont’d)
4.) Screw 2 screws (2159634, BH M4X10) behind the Assembly.
5.) Screw 2 screws (5176744, BH M4X20) to fix the DRAWER Assy to the system.

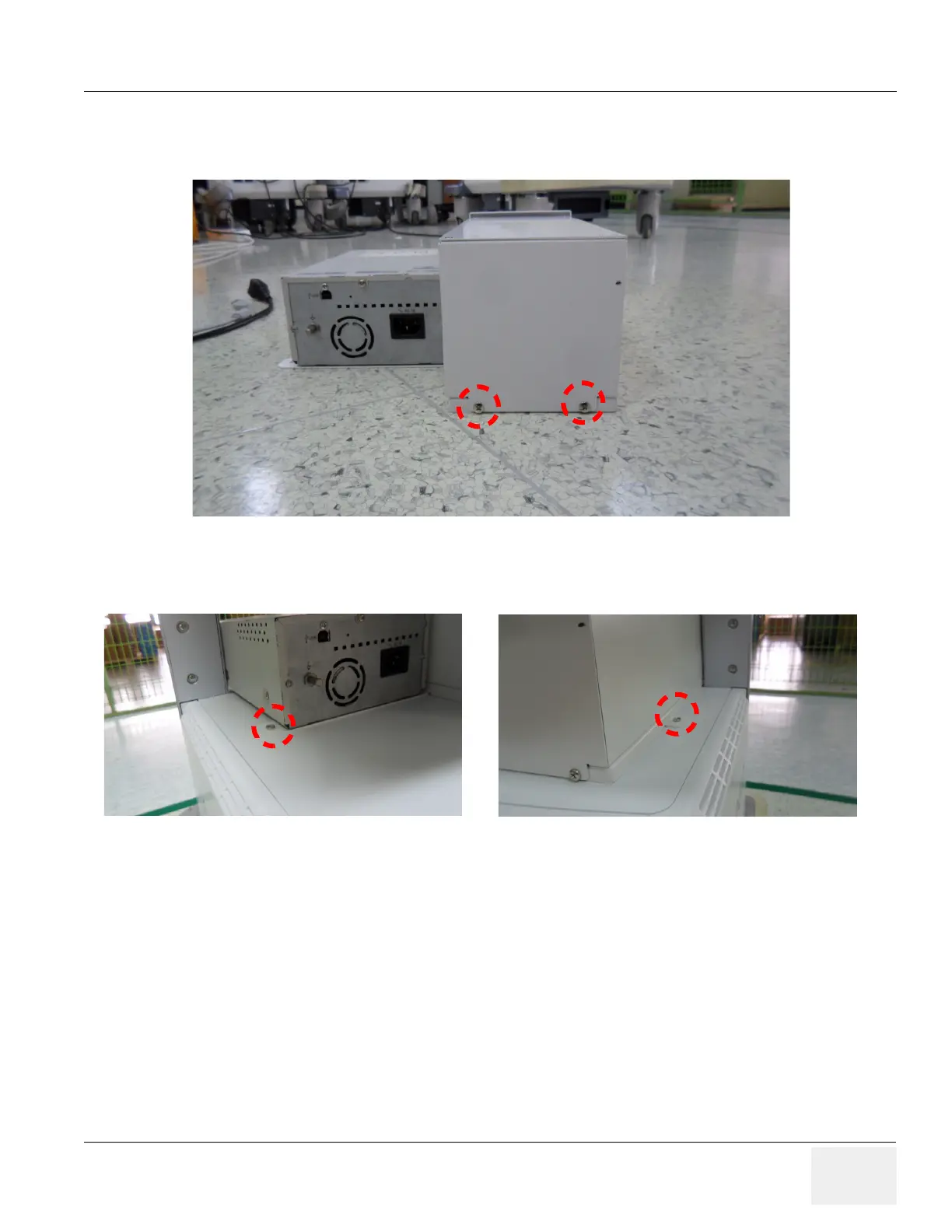

Figure 8-334 BT11 Drawer Option Installation
Figure 8-335 BT11 Drawer Option Installation
