GE MAC 5 A4 User Manual

Product Overview
Item Name Description
1 Display and
Touchscreen
Displays waveform and text data. The touchscreen enables you to
interact directly with the device through touch gestures.
2 Power button Turns the device on or off.
3 Power on LED Shows if the device is on or off.
• Green light - on.
• No light - off.
• Flashing green light - standby mode.
4 Battery LED Battery status:
• Flashing amber light at 2 second intervals - battery is charging.
• Flashing amber light at a 1 second interval - battery is critically
low.
• Flashing amber light at a 1/2 interval - battery has a
communication failure.
• No light - battery is fully charged, not installed, or discharging.
The detailed battery status shows on the Status Bar of the Acquisition
screen, see Battery Status on page 18.
5 AC Power LED AC power status:
• Green light - the device is plugged in and receiving power.
• No light - the device is not plugged into AC power.

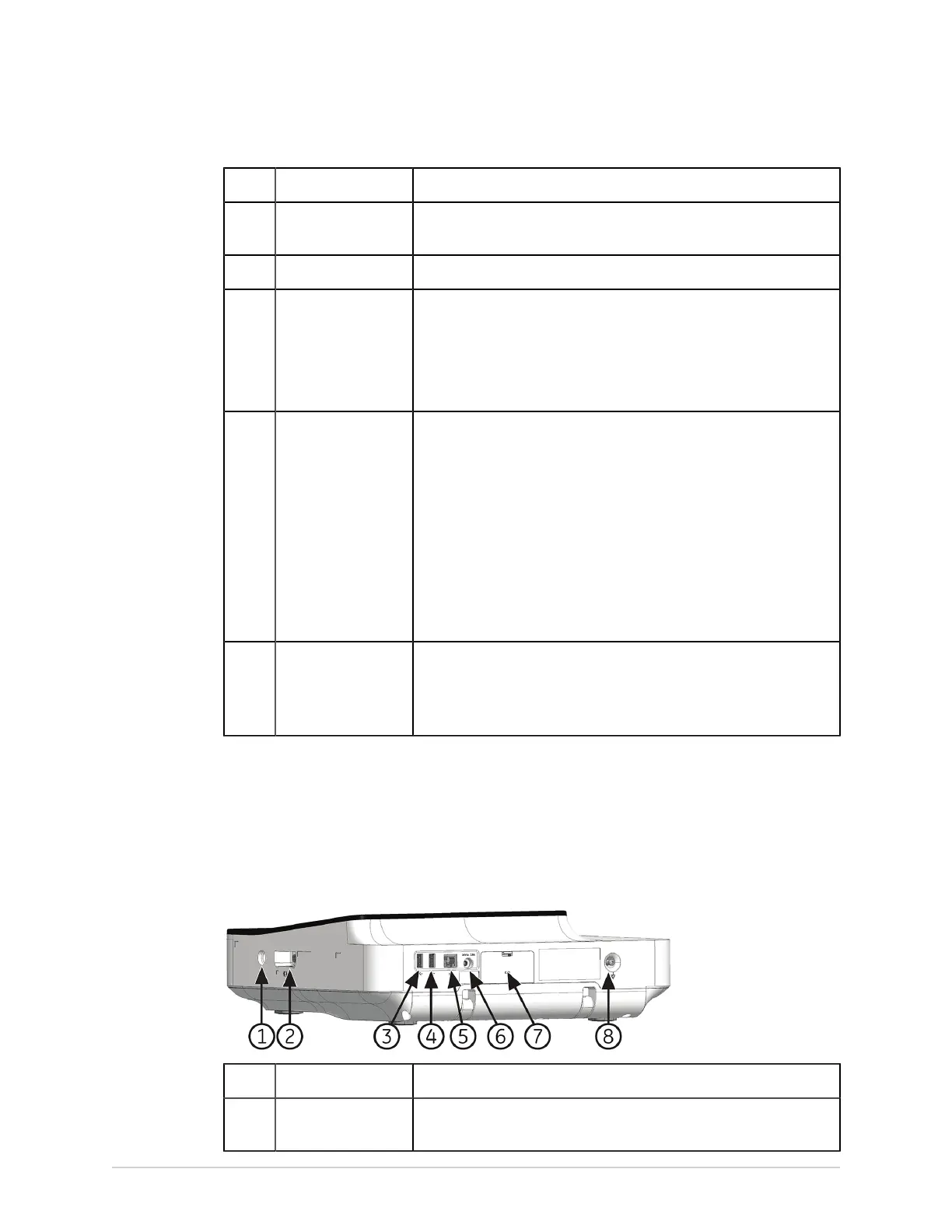

Side and Rear View
Side View
The image below is an example of the MAC 5 A4. The information in the table applies
to all MAC 5 devices.
Item Name Description
1 KISS Pump
Connector
Use to connect a KISS pump cable.
5864335-001-1  MAC
™
5 A4/MAC
™
5 A5/MAC
™
5 Lite 11
