Equipment Setup

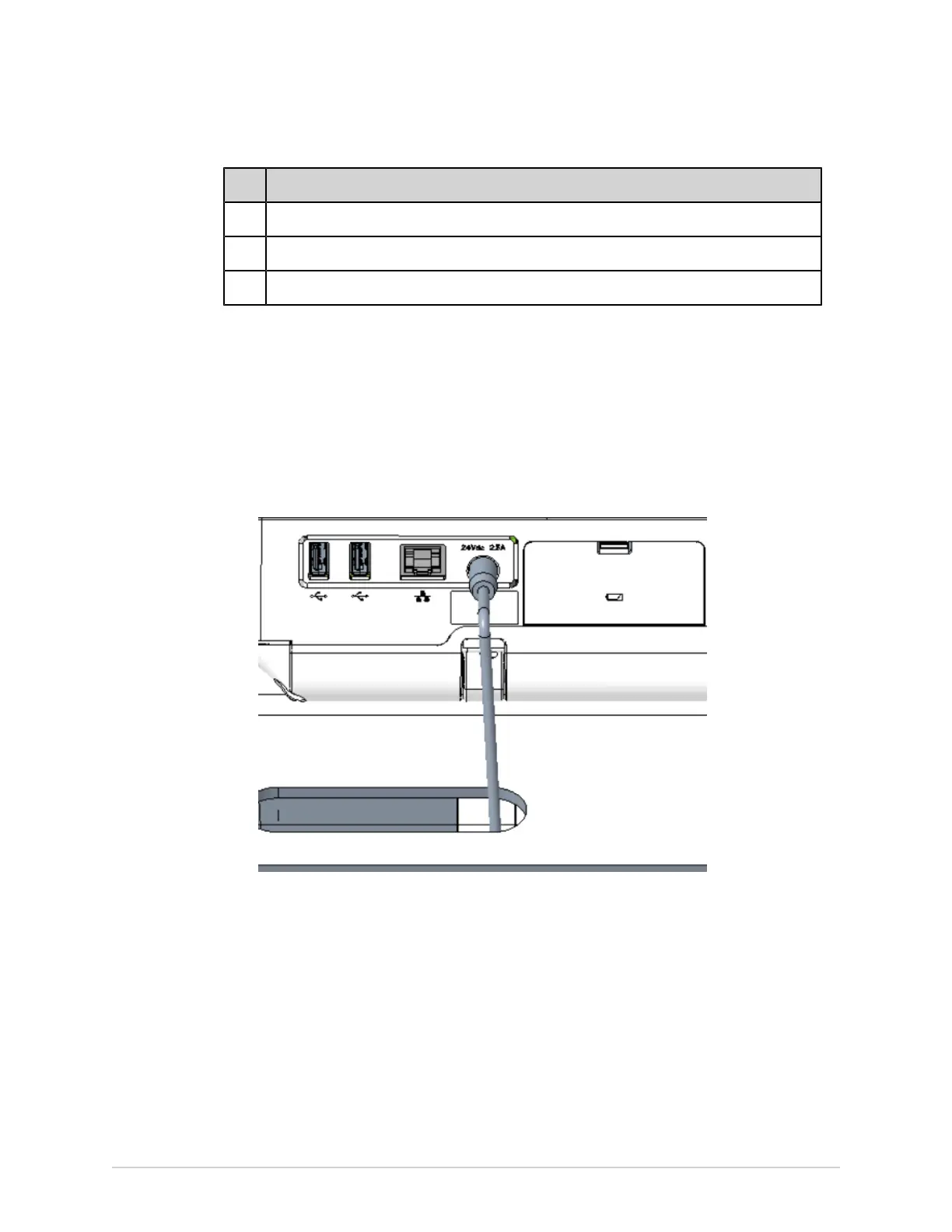

Item Description
2 Male end of the AC power cord connected to an AC outlet.
3 Female end of the AC/DC adapter cord connected to the back of the device.
4 Male end of the AC/DC adapter connected to the AC power cord.
NOTE:
Before you connect the device to the power line, check that the voltage and
frequency ratings of the power line are the same as those indicated on the
unit label. If this is not the case, do not connect the system to the power line
until you adjust the power source to match the unit power requirements.
1. Connect the female end of the power cord (1) to the AC/DC adapter.
2. Plug the female end of the AC/DC adapter cord (3) to the power connector on the
back of the device.
3. Plug the male end of the power cord (2) into an AC outlet.
NOTE:
It is recommended that you connect the device into an uninterruptible power
supply (UPS) or a surge suppressor.
4. Check the AC Power LED. If the AC Power LED is green, the device is receiving
power from the AC outlet.
Connect the External Barcode Reader
If you purchase the optional barcode reader with the device, connect it to the USB
port on the device.
24  MAC
â„¢
5 A4/MAC
â„¢
5 A5/MAC
â„¢
5 Lite 5864335-001-1
