Equipment Setup

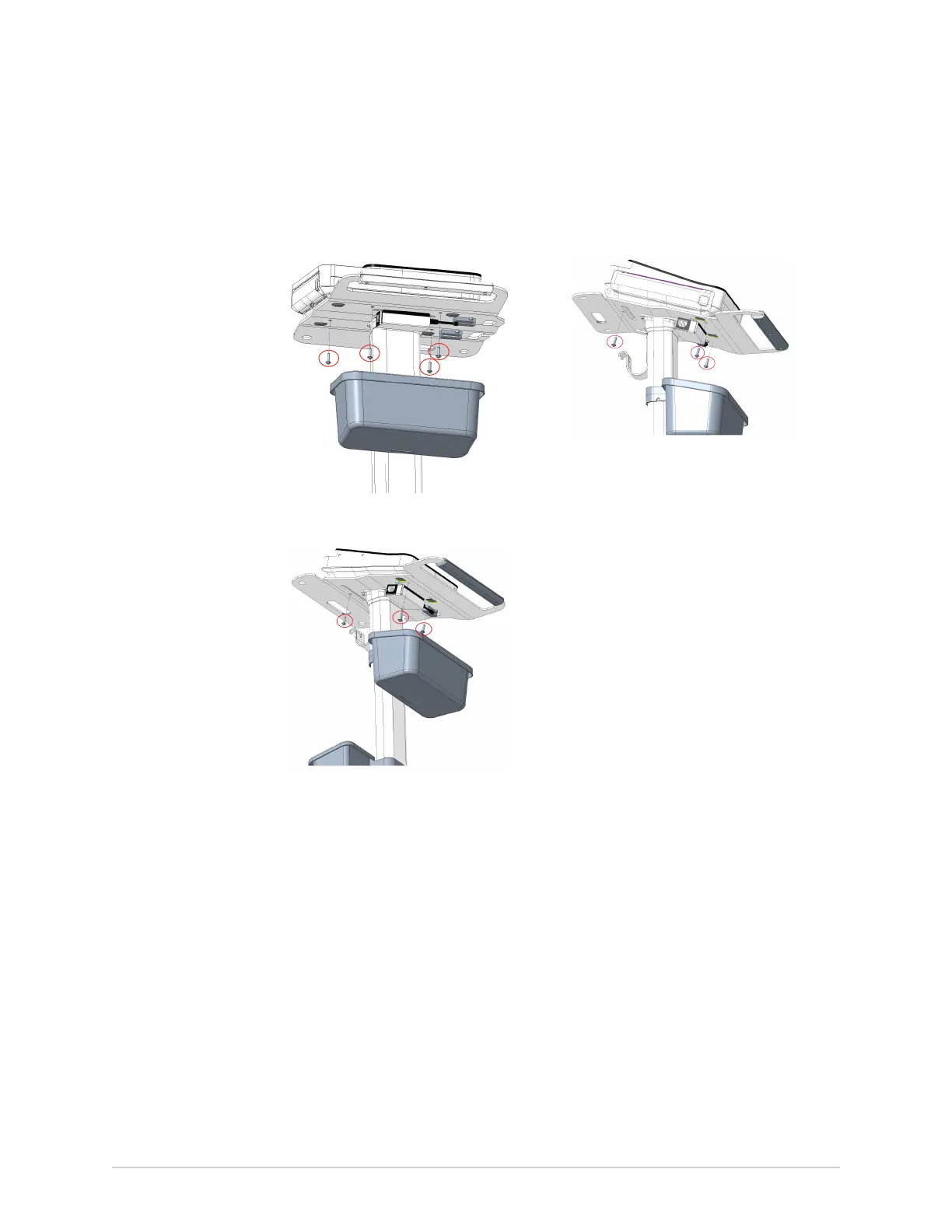

3. Insert the screws (M6x20) and washers (D12xD6.5x1.5) provided with the trolley
through the bottom of the top plate into the device, and tighten them with 4mm
torque spanner.
MAC 5 A4 MAC 5 A5
MAC 5 Lite
Connect the LAN Cable
A wireless module is installed in the device before it is shipped from the factory. If you
do not configure the device to connect to a wireless network, you can use a wired
connection.
1. To connect to a wired network, insert an Ethernet cable to the RJ45 network
connector of the device.
5864335-001-1 MAC
™
5 A4/MAC
™
5 A5/MAC
™
5 Lite 37
