Work with the Patients List
9
Work with the Patients List
If the
Order Manager
is disabled in the
Settings
scr
een, the
Patients
list displays in
the Acquisition screen. The information of r
ecent patients is stored in the
Patients
list
,
and you can view up to 500 recent patient information r
ecords.

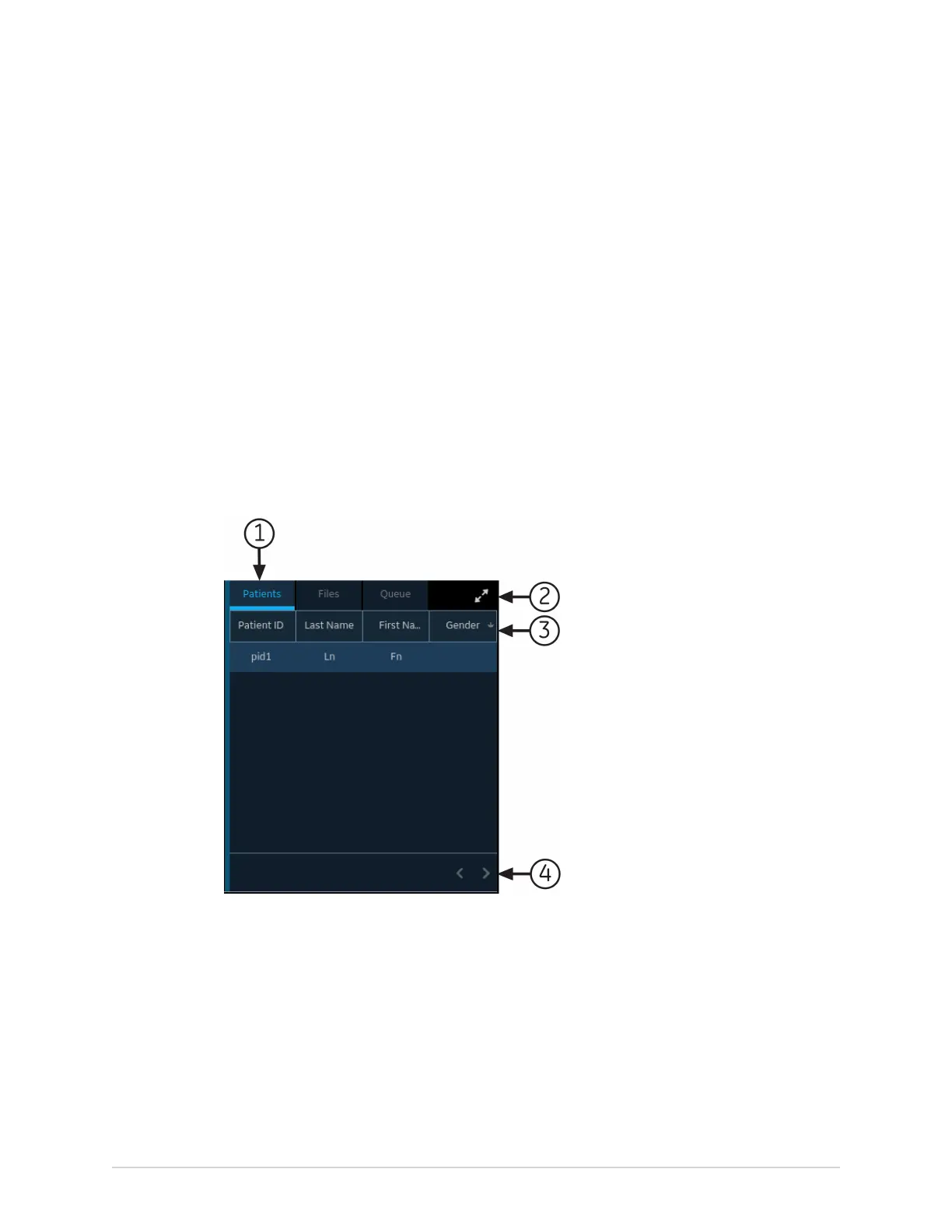

The figure below illustrates the
Patients
collapsed list:
The figure below illustrates the
Patients
expanded list:
124

MAC
â„¢
5 A4/MAC
â„¢
5 A5/MAC
â„¢
5 Lite

5864335-001-1
123
125
