Record an ECG or Rhythm
5
Record an ECG or Rhythm

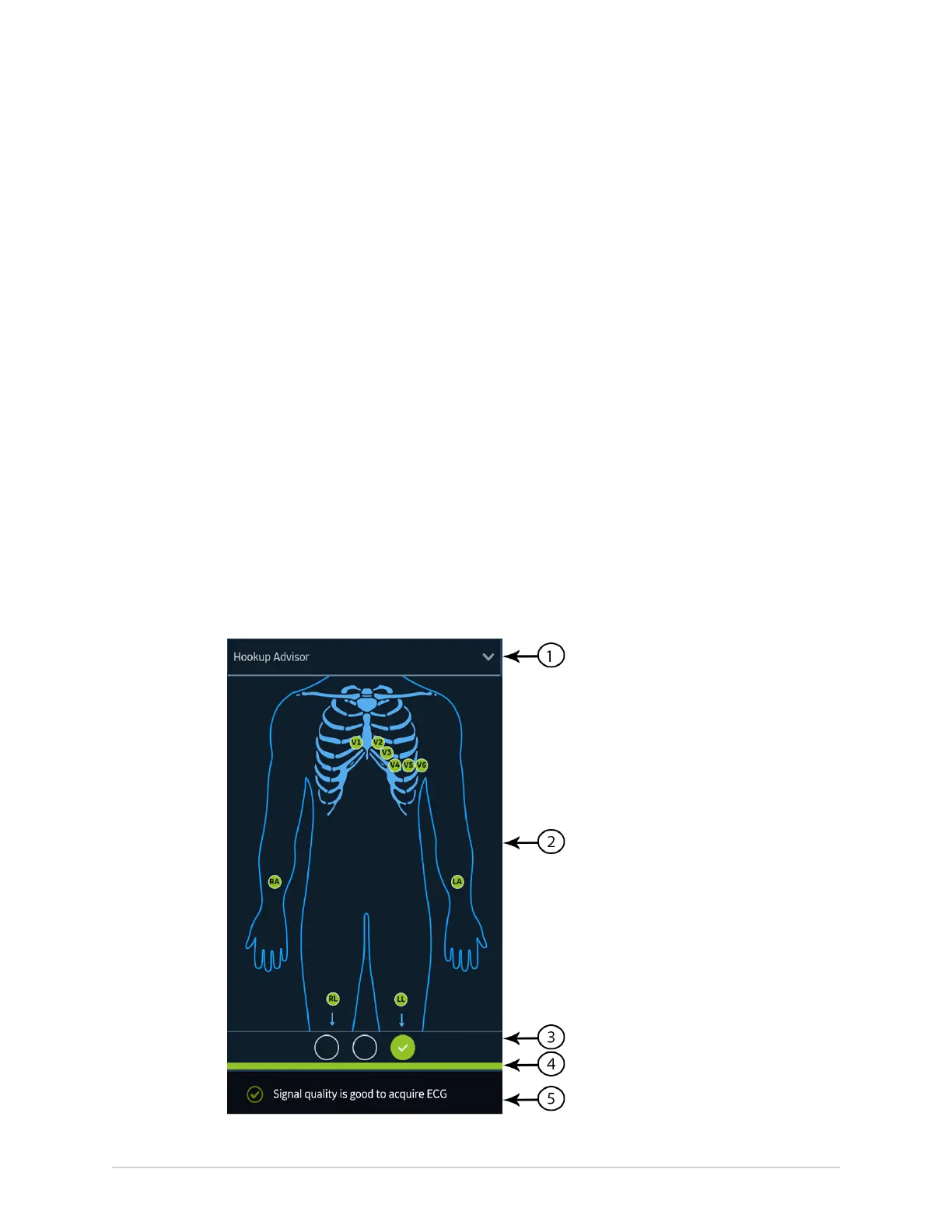

Hookup Advisor Overview
The Hookup Advisor is a tool to monitor the lead signal quality during ECG
acquisition. It can decrease or eliminate the occurrence of poor quality ECGs, by
allowing you to view each leadwire signal quality and adjust as necessary.
The Hookup Advisor reports the status based on signals from each leadwire. Connect
the RA/R leadwire, and then another leadwire to the patient, an electrode placement
image expands in the Hookup Advisor panel. If all leadwires are disconnected from
the patient, the electrode placement image collapses after a few seconds.
62  MAC
™
5 A4/MAC
™
5 A5/MAC
™
5 Lite 5864335-001-1
