Record an ECG or Rhythm
Change Speed, Gain, and Filter
The Acquisition screen displays the waveform based on the configured speed, gain,
and filter. After starting a new patient, you can change the speed, gain, or filter on the
Acquisition screen.
1. At the bottom, right-side of the Acquisition screen, select anywhere to the left of
the ellipsis icon.

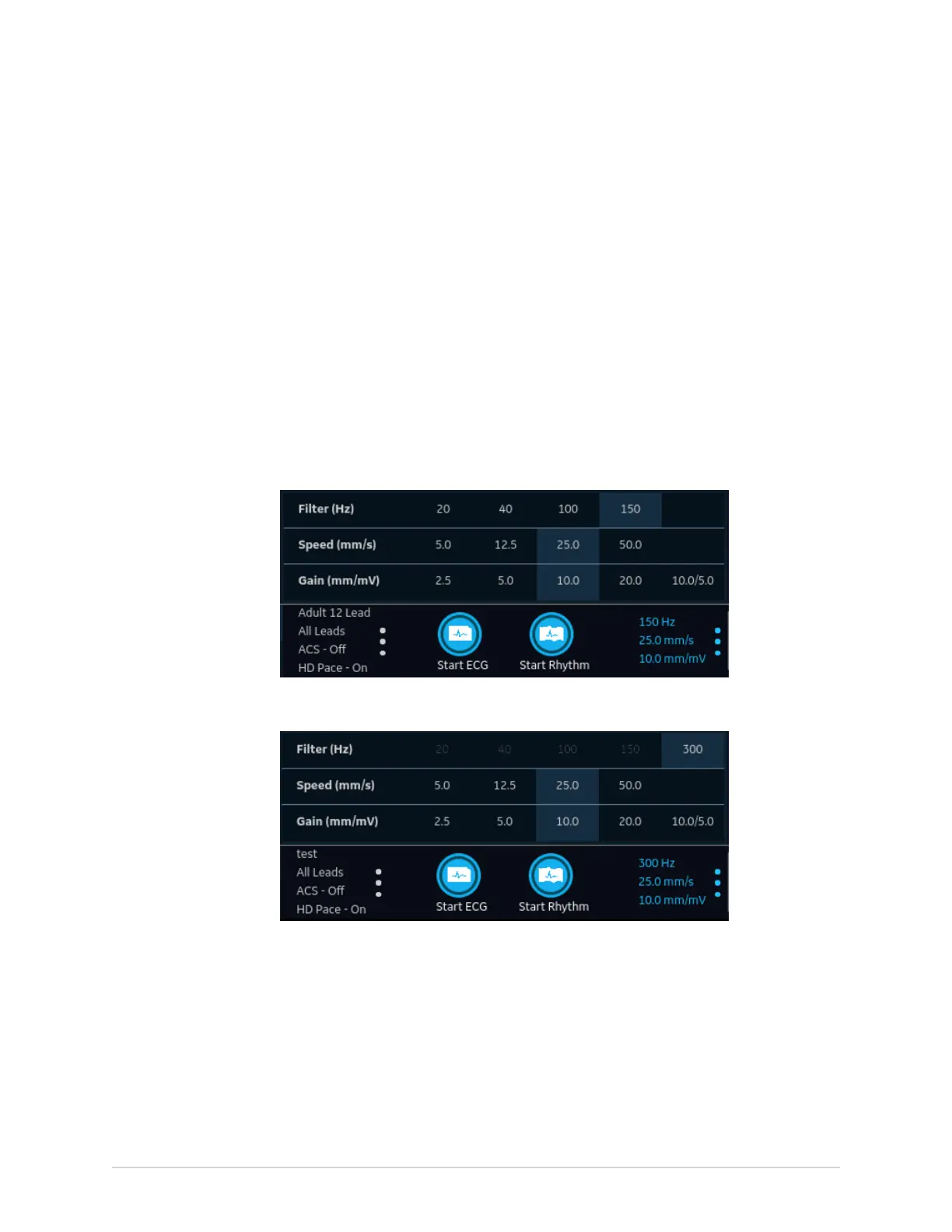

The Filter (Hz), Speed (mm/s), and Gain (mm/mV) menu expands.
• If you do not purchase the F300 - 300 Hz Acquisition option, the Filter (Hz)
values are 20, 40, 100 and 150.
• If you purchase the F300 - 300 Hz Acquisition option and the Acquisition
Bandwidth of the selected lead set is 150Hz, the Filter (Hz) values are 20, 40,
100 and 150.
• If you purchase the F300 - 300 Hz Acquisition option and the Acquisition
Bandwidth of the selected lead set is 300Hz, the Filter (Hz) value is 300.
2. To adjust the speed, gain, and filter of the waveform, select a different value from
the list.
The selected values are applied to the waveform. Select anywhere outside the
menu to collapse it.
